Запчасти Case IH 1260 (75.110.20) - ACCUROW - CLUTCH ASSEMBLY (75) - SOIL PREPARATION

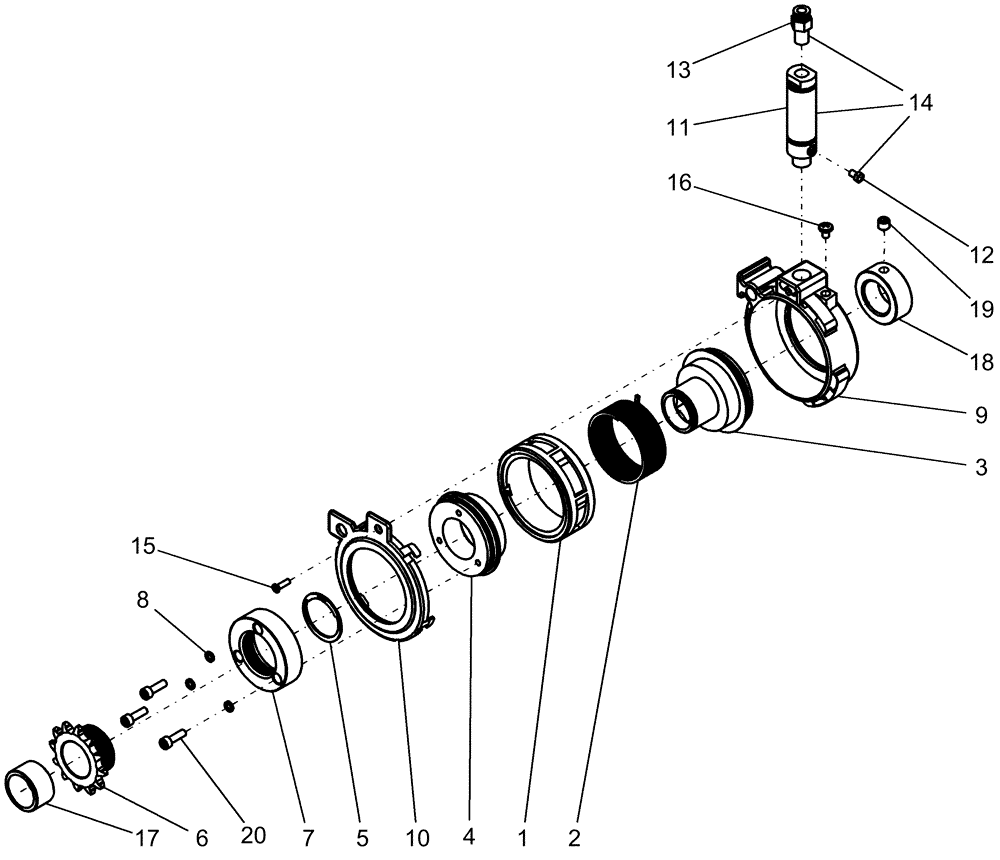

Схема запчастей Case IH 1260 - (75.110.20) - ACCUROW - CLUTCH ASSEMBLY (75) - SOIL PREPARATION
17
8
20
16
3
14
9
2
12
11
15
5
13
10
1
18
4
7
19
6

Артикул

Название

Примечание

Количество

0

84133322

CLUTCH

pneumatic seed drive

1шт.

0

84133322R

REMAN-CLUTCH ASSY

1265 32/30, 1265 36/20, 1265 36/30, 1265 36/22, All FRONT FOLD WF TRAIL PLANTER (12/12-), 1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/10-), All Pneumatic seed drive

1шт.

0

84133322C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

1

84143594

COLLAR

Clutch

1шт.

2

84143597

TORSION SPRING

LH

1шт.

3

84143599

HUB

Hex Shaft

1шт.

4

84143603

HUB

Sprocket Mount

1шт.

5

87682413

CIRCLIP

#125

1шт.

6

84133356

SPROCKET

12T

1шт.

7

84133355

DRIVER

Sprocket

1шт.

8

87682414

LOCK WASHER

#10

3шт.

9

84143605

HOUSING

Clutch, Air Base

1шт.

10

84143607

HOUSING

Clutch, Air Lid

1шт.

11

84143611

CYLINDER

Air

1шт.

12

84143613

AIR FILTER

1шт.

13

84256879

FITTING

Straight, 1/4" PTC x 1/8" npt

1шт.

14

84171728

CYLINDER

assy, air

1шт.

15

84247070

SCREW,#6 - 32 x 3/8"

Flat Head, #6-32 x 3/8"

1шт.

16

86511931

SCREW,Pan, 1/4" - 20 x 5/8"

1шт.

17

84143615

SPACER

Clutch

1шт.

18

84143616

COLLAR

Lock

1шт.

19

483-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

1шт.

20

280160

HEX SOC SCREW,#10 - 32 x 3/4"

#10-32 x 3/4

3шт.

Выбрано товаров: 23
