Запчасти Case IH 1260 (75.110.19[01]) - ACCUROW - VALVE ASSEMBLY, AIR CLUTCH (75) - SOIL PREPARATION

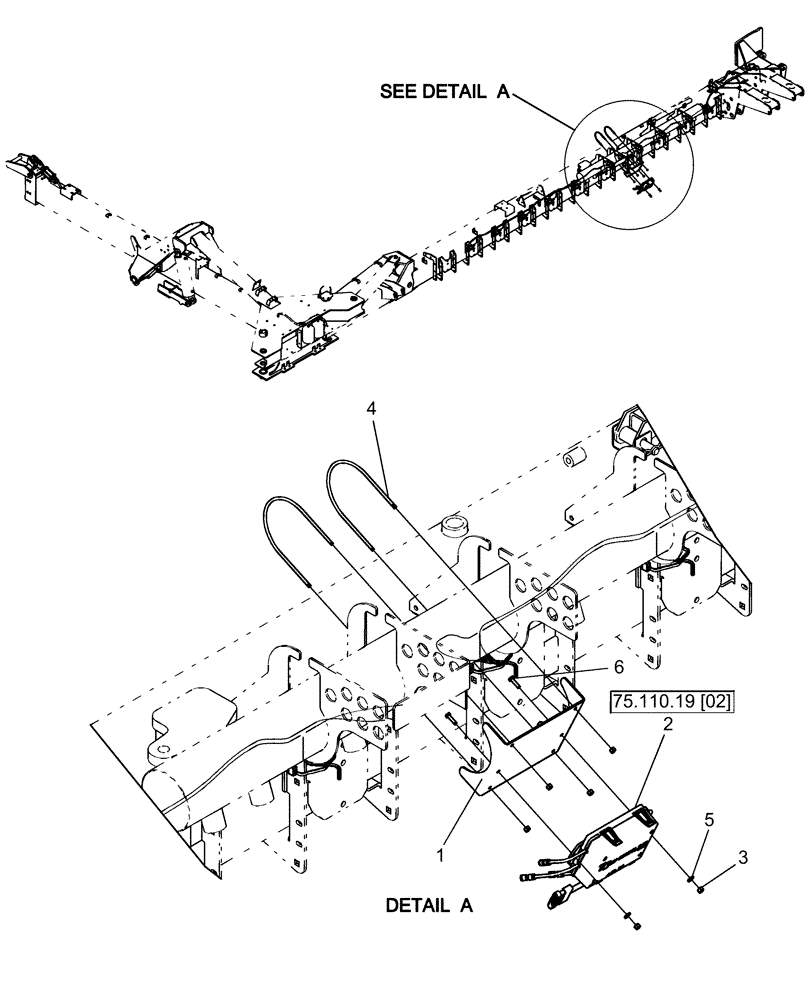

Схема запчастей Case IH 1260 - (75.110.19[01]) - ACCUROW - VALVE ASSEMBLY, AIR CLUTCH (75) - SOIL PREPARATION
2
4
5
1
3
6

Артикул

Название

Примечание

Количество

1

84169128

SUPPORT

valve module

1шт.

2

84170217

VALVE

pneumatic clutch

1шт.

See Figure 75.110.19 [02]

1шт.

2

84170217R

REMAN-HYD VALVE

1265 32/30, 1265 36/20, 1265 36/30, 1265 36/22, All FRONT FOLD WF TRAIL PLANTER (12/12-), 1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/10-), All pneumatic clutch

1шт.

2

84170217C

CORE-VALVE HYD

Return Number

1шт.

3

87034810

NUT,1/4"-20, GA

6шт.

4

84125926

U-BOLT

ur 1/4"-20 x 160 mm id x 183.8 mm legs

2шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

6

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

Выбрано товаров: 9
