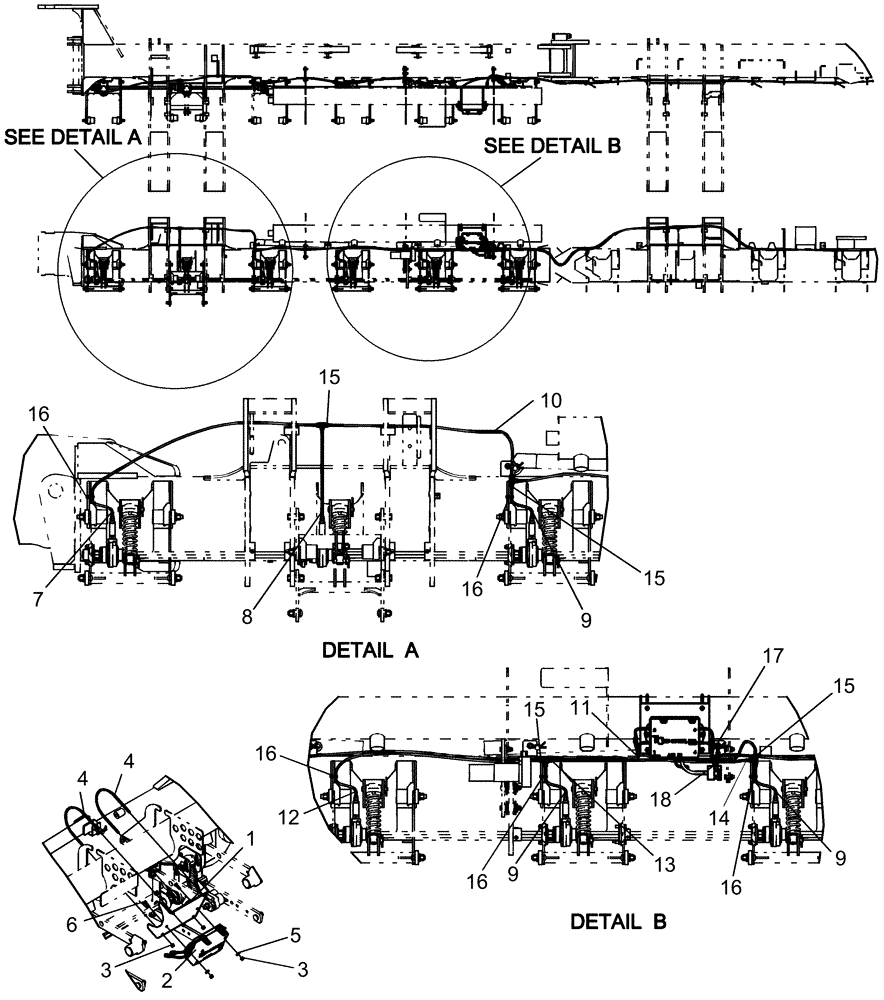

Запчасти Case IH 1260 (75.110.16) - ACCUROW - PLUMBING OUTER WING (32R30 AND 36R30) (75) - SOIL PREPARATION

1

84169128

SUPPORT

valve module

1шт.

2

84170217

VALVE

pneumatic clutch

1шт.

2

84170217R

REMAN-HYD VALVE

1260 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES, pneumatic clutch (1/10-)

1шт.

2

84170217C

CORE-VALVE HYD

Return Number

1шт.

3

87034810

NUT,1/4"-20, GA

6шт.

4

84125926

U-BOLT

ur 1/4"-20 x 160 mm id x 183.8 mm legs

2шт.

5

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

6

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

8

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

Cut to 450 mm

1шт.

9

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

3шт.

10

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

Cut to 860 mm

1шт.

11

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

Cut to 2080 mm

1шт.

12

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

13

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

14

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

15

84250157

TEE

Union, Serial Range: Push-Connect

4шт.

16

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

5шт.

17

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

Cut to 1160 mm

1шт.

18

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

250' roll

1шт.

Cut to 3520 mm

1шт.
