Запчасти Case IH 1260 (75.110.11) - LIQUID FERTILIZER - GRANULAR CHEMICAL, 32R DRIVE (75) - SOIL PREPARATION

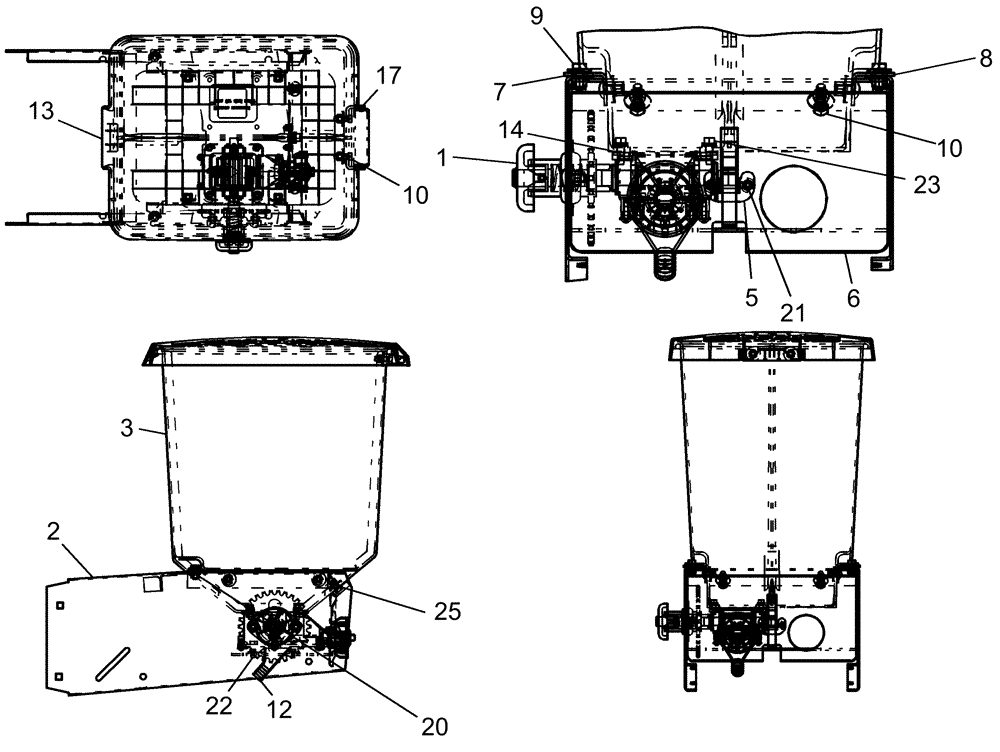

Схема запчастей Case IH 1260 - (75.110.11) - LIQUID FERTILIZER - GRANULAR CHEMICAL, 32R DRIVE (75) - SOIL PREPARATION
13
21
14
7
10
22
8
6
23
1
20
9
12
25
17
5
10
2
3

Артикул

Название

Примечание

Количество

1

86991726

BEARING ASSY

drive with sprocket and bearing

1шт.

2

86990636

FRAME

granular hopper support

1шт.

3

86991668

HOPPER

granular chemical

1шт.

4

87417490

WASHER,8.48mm ID x 12.7mm OD x 4mm Thk

.334" x .5" x .157"

2шт.

5

5625

LATCH

clamp over center

1шт.

6

86990698

PLATE

support hopper

1шт.

7

86990645

RAIL ASSY.

hopper support LH

1шт.

8

86990694

RAIL ASSY.

hopper support RH

1шт.

9

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

11

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

6шт.

12

137044C1

NECK FILLER

funnelok

1шт.

13

409683A1

COVER

hopper, granular chemical

1шт.

14

134298C1

GASKET

hopper

1шт.

15

134289C1

RUBBER WASHER

rubber

8шт.

16

134291C1

WASHER,7.1mm ID x 14mm OD x 1.52mm Thk

hopper

4шт.

17

333790A1

BRACKET

lid mounting

1шт.

18

86050277

NUT,5/16"-18, GB

8шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

20

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

21

86624117

SCREW,Hex, #10 - 24 x 1/2"

2шт.

22

86624119

SELF-TAP SCREW,Hex Wash Hd, #12 x 3/8"

2шт.

23

86624115

SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"

4шт.

24

495-81102

WASHER,.266" x 1/2" x .060"

4шт.

25

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

8шт.

26

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

Выбрано товаров: 26
