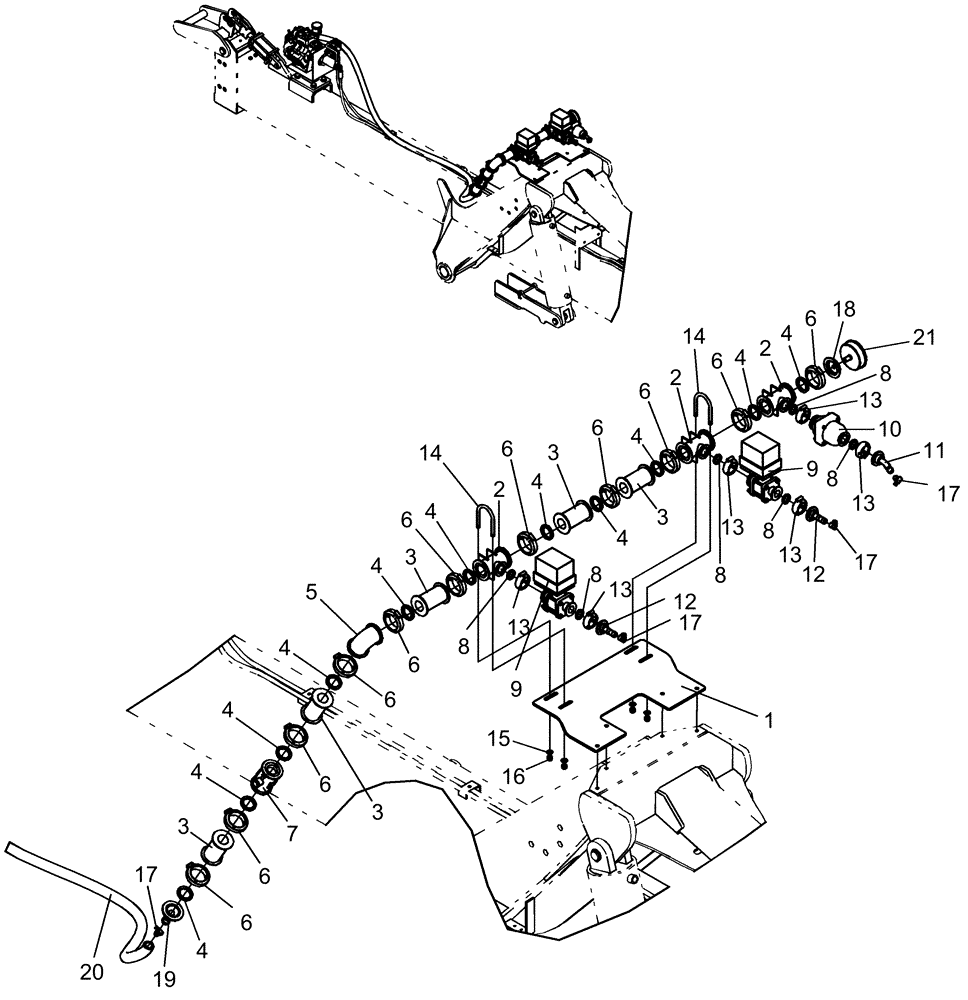

Запчасти Case IH 1260 (75.110.05) - LIQUID FERTILIZER - TWO SECTION CONTROL WITHOUT 600 GAL TANK (75) - SOIL PREPARATION

1

84160825

SUPPORT

fertilizer valve mount

1шт.

2

86984089

TEE,2" Port x 1" Flanged Tee

2" x 2" x 1"

3шт.

3

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

5шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2 7/32" od x 1 41/64" id x 1/4" thick

11шт.

5

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

6

400502A1

CLAMP,80.96mm ID

2" flange banjo #fc200

11шт.

7

87504660

METER

flow

1шт.

8

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

6шт.

9

406039A1

SOLENOID VALVE,1" Electric Valve

control 2 section fertilizer

2шт.

10

87268172

VALVE

Check 1" MFD 100PSIG

1шт.

11

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

1шт.

12

408351A1

FITTING,1" Flange x 3/4" Hose Barb

poly 1" manifold x 3/4" hb

2шт.

13

406041A1

CLAMP,58.51mm

1" flange banjo #fc100

6шт.

14

87413269

U-BOLT

ur 3/8"-16 x 2 1/2" wide x 4" deep ss with 1 3/4" thread

2шт.

15

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

16

86985855

LOCK NUT

3/8"-16 ss 1-way, nylon insert

4шт.

17

9706921

HOSE CLAMP,12.7mm - 35mm

4шт.

18

87670356

PLUG,2" Flange Plug with 1/4" FPT

2"

1шт.

19

86987616

FITTING,2" Flange x 1" Hose Barb

2" flange x 1" barb

1шт.

20

134329C3

HOSE

1" x 50' epdm

1шт.

Cut to 2700 mm

1шт.

21

86990418

GAUGE

pressure 4" SS 0 - 100 PSI

1шт.
