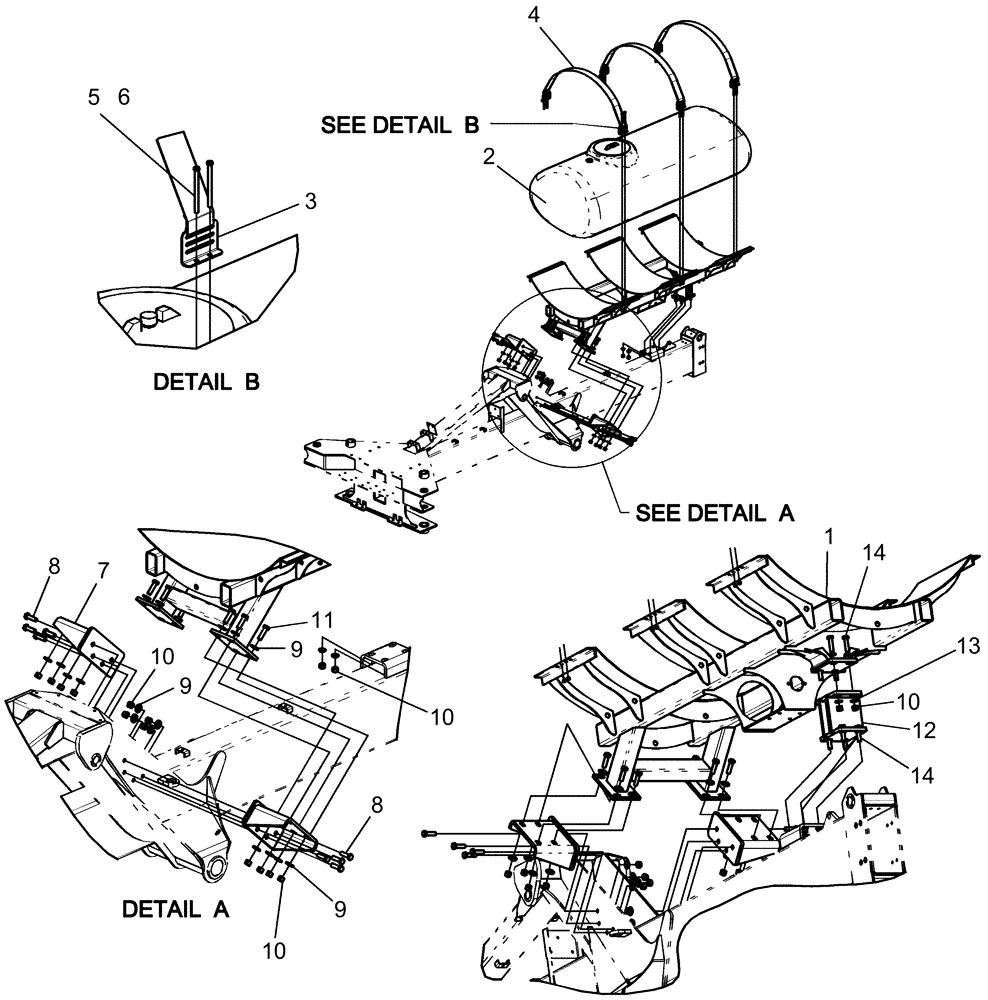

Запчасти Case IH 1260 (75.110.03) - LIQUID FERTILIZER - TANK AND FRAME ASSEMBLY (75) - SOIL PREPARATION

1

84157784

FRAME

600 gallon tank

1шт.

2

87607560

TANK

600 gallon

1шт.

3

87647049

PLATE

strap anchor

6шт.

4

87660684

STRAP

600 gallon fertilizer tank

3шт.

5

87657981

BOLT

3/8"-16 x 5", G5, Full thread

12шт.

6

86625064

NUT,Prev Torque, 3/8" - 16, Gr B

12шт.

7

87691232

SUPPORT

fertilizer frame

2шт.

8

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

Model Year 2011 And Prior

8шт.

8

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

Model Year 2012 And After

20шт.

9

87326714

WASHER,0.81" ID x 1.75" OD x 0.22" Thk

0.8125 x 1.75 x 0.219 HTS, Model Year 2011 And Prior

24шт.

10

84490435

FLANGE NUT

20шт.

11

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

Model Year 2011 And Prior

8шт.

12

84174268

SUPPORT

600 Gallon Tank

1шт.

13

86624162

WASHER,0.81" ID x 1.5" OD x 0.18" Thk

Model Year 2011 And Prior

8шт.

14

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Model Year 2011 And Prior

8шт.
