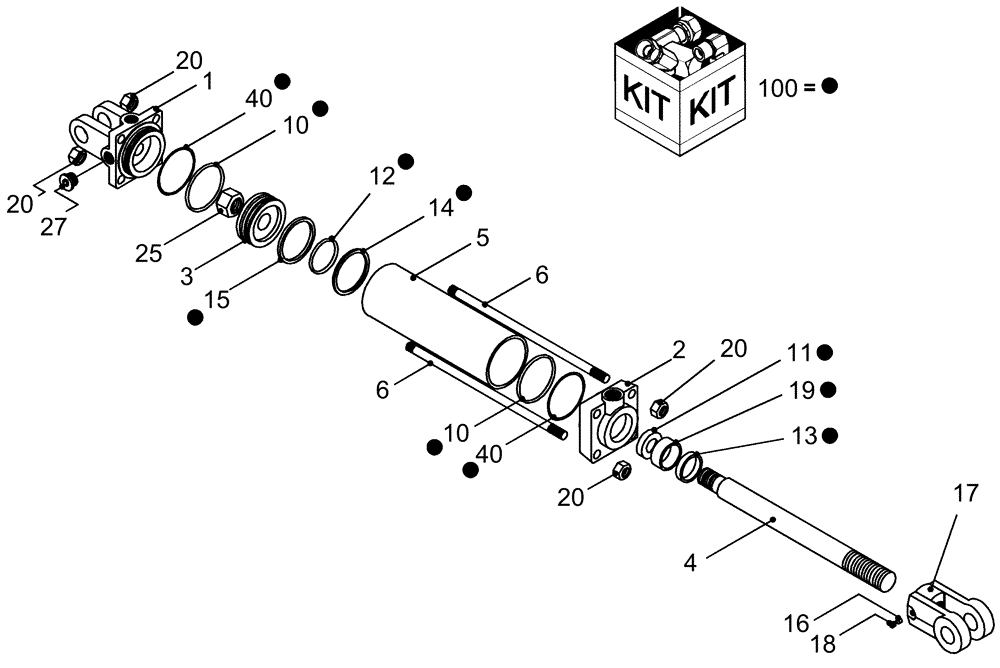

Запчасти Case IH 1260 (35.116.01) - HYDRAULIC CYLINDER - 4" X 24" - 3000 PSI NITRO (35) - HYDRAULIC SYSTEMS

0

87671045

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 609.6mm Stroke

4" x 24" Nitro

1шт.

1

87409410

HEAD

cylinder front 4" bore x 1 3/4" rod

1шт.

2

87409432

HEAD

cylinder base 4" bore, 2, 3/4"-16 orb

1шт.

3

87454887

PISTON

4" Cylinder

1шт.

4

84148053

PISTON ROD

1шт.

5

NSS

NOT SOLD SEPARAT

cylinder, 1 3/4" rod 1 1/2" -12 thread

1шт.

6

87409493

BOLT

cylinder tie rod 4" x 24"

4шт.

16

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

pad, clevis set screw

1шт.

17

87409391

CLEVIS,1 -1/2" - 12

cylinder, 1" pin, 1 1/2"-12, Monarch #493168

1шт.

18

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

20

408

NUT,5/8" - 18, Gr 5

8шт.

25

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

27

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

100

9791V2

SEAL KIT

4 Monarch 1 3/4" rod psp seal (#643184)

1шт.
