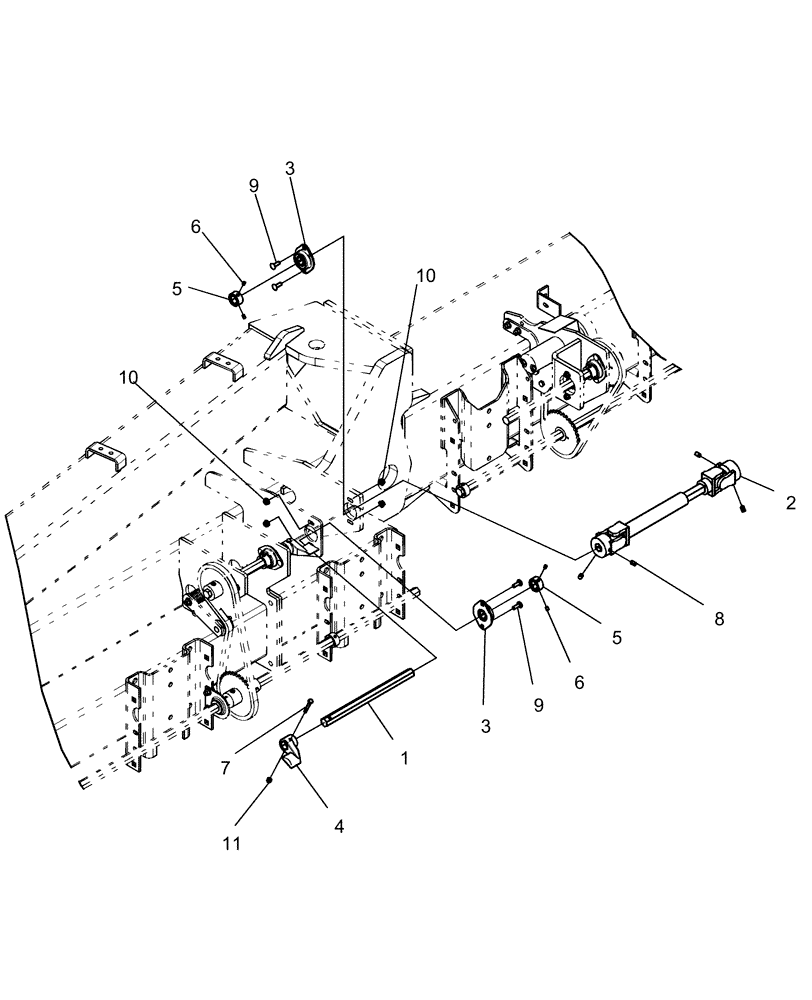

Запчасти Case IH 1260 (75.100.11) - SEED DRIVE - CROSSOVER RT 90 (75) - SOIL PREPARATION

1

87495544

SHAFT

hex, 22 mm x 346 mm fl

1шт.

2

87689420

SHAFT

telescoping

1шт.

3

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

4

87539852

COUPLING

cross over drive

1шт.

5

22224

COLLAR

lock, 7/8" id

2шт.

6

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

4шт.

7

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

8

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

4шт.

9

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

11

280129

NUT,1/4"-20

1шт.
