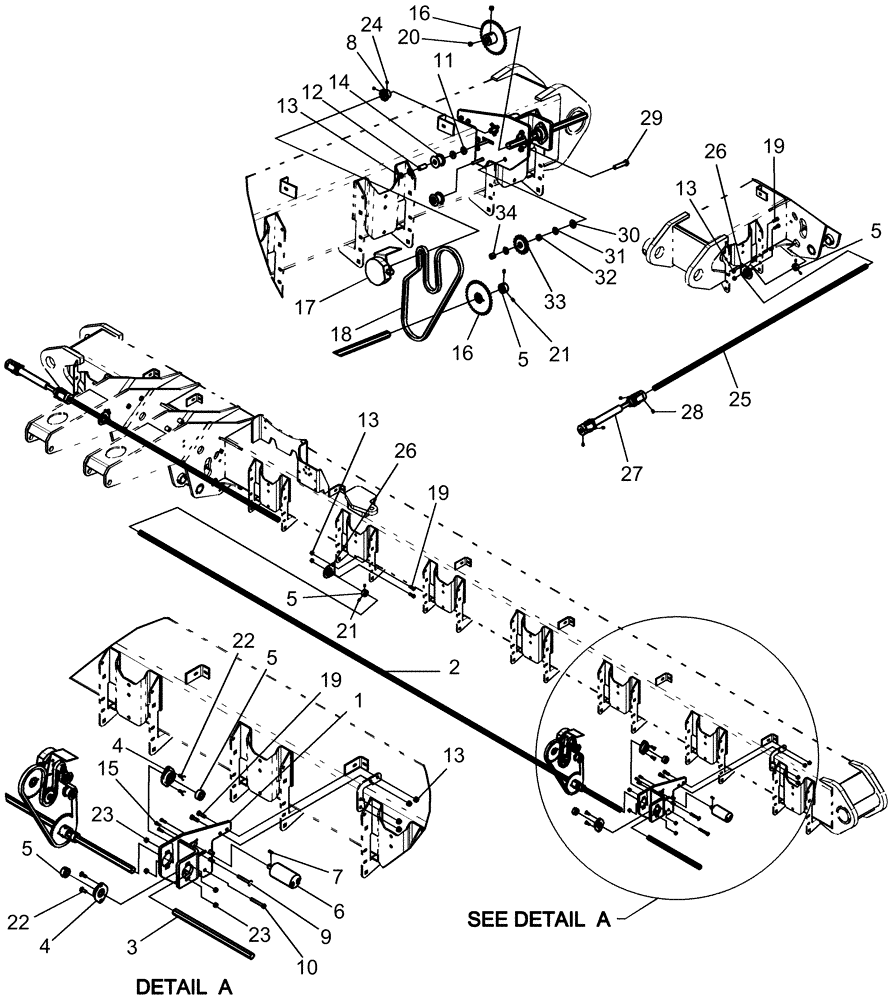

Запчасти Case IH 1260 (75.100.09) - SEED DRIVE - MIDDLE 90 (75) - SOIL PREPARATION
№
Артикул
Название
Примечание
Количество
1
84170153
SUPPORT
Seed Drive LH
1шт.
1
84170148
SUPPORT
Seed Drive RH
1шт.
2
87495557
SHAFT
hex, 22 mm x 4191 mm fl
1шт.
3
87495561
SHAFT
hex, 22 mm x 450 mm fl
1шт.
4
134158C92
BALL BEARING,22.5mm ID
7/8 hex flange
2шт.
5
22224
COLLAR
lock, 7/8" id
5шт.
6
293288A1
MOTOR
31.6 cm3 (1.93 in3) displacement seed drive
1шт.
293288A1R
REMAN-HYD MOTOR
1260 Frnt. Fold Trling. Planter
1шт.
293288A1C
CORE-MOTOR HYDRAULIC
Return Number
1шт.
7
86632575
KEY
3/16" Sq x 11/16" Par
1шт.
8
232893A1
SPROCKET
40 x 10
1шт.
9
280628
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5
1шт.
10
88444
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
1шт.
11
86624186
WASHER,0.41" ID x 1.12" OD x 0.13" Thk
6шт.
12
381930A1
BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L
chain idler
2шт.
13
247780
SERRATED NUT,Flg, USR, 3/8"-16
10шт.
14
1277726C1
ROLLER,48mm OD x 34mm L
idler
2шт.
15
86632598
HEX SOC SCREW,1/4" - 28 x 3/4"
3шт.
16
353037A1
SPROCKET
34 tooth
2шт.
17
87463000
SENSOR
Assembly, Hydraulic Drive
1шт.
18
84128381
CHAIN
seed drive
1шт.
19
88011
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
8шт.
20
86624123
SET SCREW,Hex Skt, 1/2" - 13 x 1/2"
4шт.
21
84-1256
SET SCREW,Hex Soc, 1/4"-28 x 3/8"
10шт.
22
88992
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5
4шт.
23
145458
SERRATED NUT,5/16"-18 GR 5 ZND
4шт.
24
86632577
SET SCREW,Hex Skt, 1/4" - 20 x 1/4"
2шт.
25
87495558
SHAFT
hex, 22 mm x 1850 mm fl
1шт.
26
102724A2
BALL BEARING,22.6mm ID
7/8" hex bore with hanger
2шт.
27
87689420
SHAFT
telescoping
1шт.
28
87035712
SET SCREW,Hex Skt, 3/8" - 16 x 5/8"
4шт.
29
87972
BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5
1шт.
30
495-81024
WASHER,17/32" x 1 1/4" x .060"
1шт.
31
86632589
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
.531" x 1.062" x .095" HTS
2шт.
32
87302487
SPACER,13.8mm ID x 21.3mm OD x 10.3mm L
1/2" x 13/32"
1шт.
33
607779R91
DRIVE SPROCKET
idler 18T
1шт.
Выбрано товаров: 37
