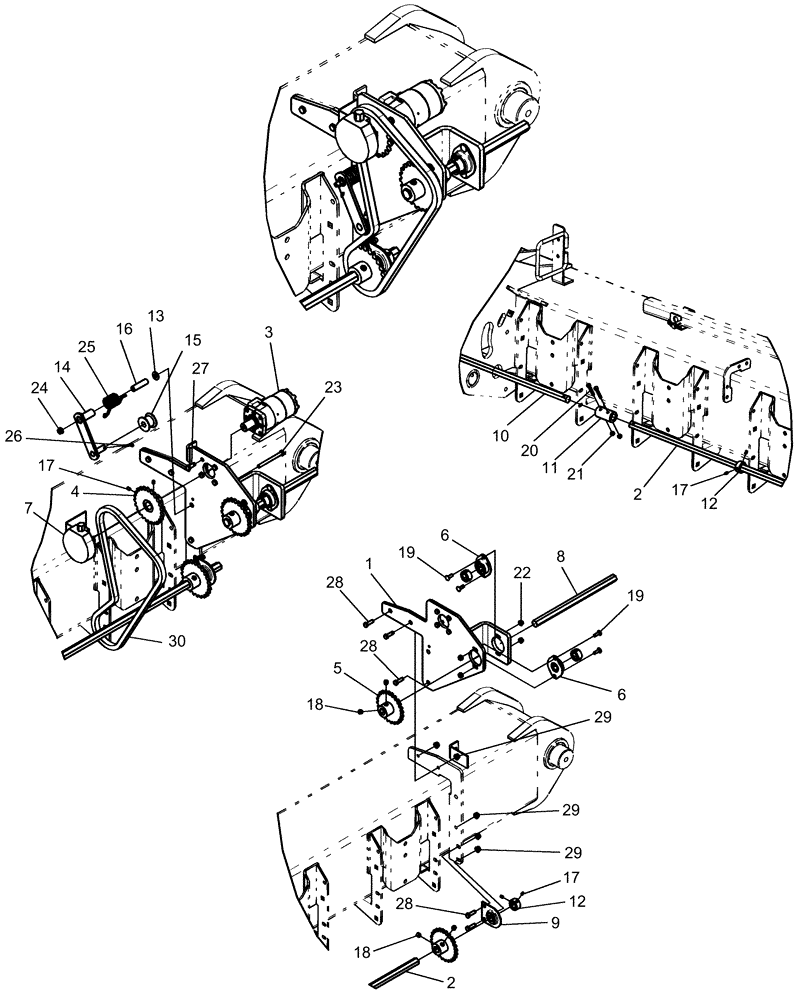

Запчасти Case IH 1260 (75.100.06[02]) - SEED DRIVE - OUTER 66, MODEL YEAR 2010 AND BEFORE (75) - SOIL PREPARATION

1

84148175

MOUNT

seed drive

1шт.

1

84148134

MOUNT

seed drive

1шт.

Not Shown

1шт.

2

84128388

SHAFT

hex, 22 mm x 5588 mm fl

1шт.

3

87752460

HYDRAULIC MOTOR

seed drive

1шт.

4

87694455

SPROCKET

24 tooth

1шт.

5

87503169

SPROCKET

24 tooth 50 chain

2шт.

6

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

7

87495545

SENSOR

assembly, hydraulic drive

1шт.

8

84130039

SHAFT

hex, 22 mm x 400 mm fl

1шт.

9

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

1шт.

10

84130038

SHAFT

hex, 22 mm x 1600 mm fl

1шт.

11

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

1шт.

12

22224

COLLAR

lock, 7/8" id

4шт.

13

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

1шт.

14

87550916

TENSIONER

chain

1шт.

15

1277726C1

ROLLER,48mm OD x 34mm L

idler

1шт.

16

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

1шт.

17

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

10шт.

18

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

19

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

20

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

21

20356

NUT,1/4"-20, GB

2шт.

22

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

23

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

1шт.

24

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

1шт.

25

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

26

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

27

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

28

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

5шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

5шт.

30

84130040

CHAIN

seed drive 50

1шт.
