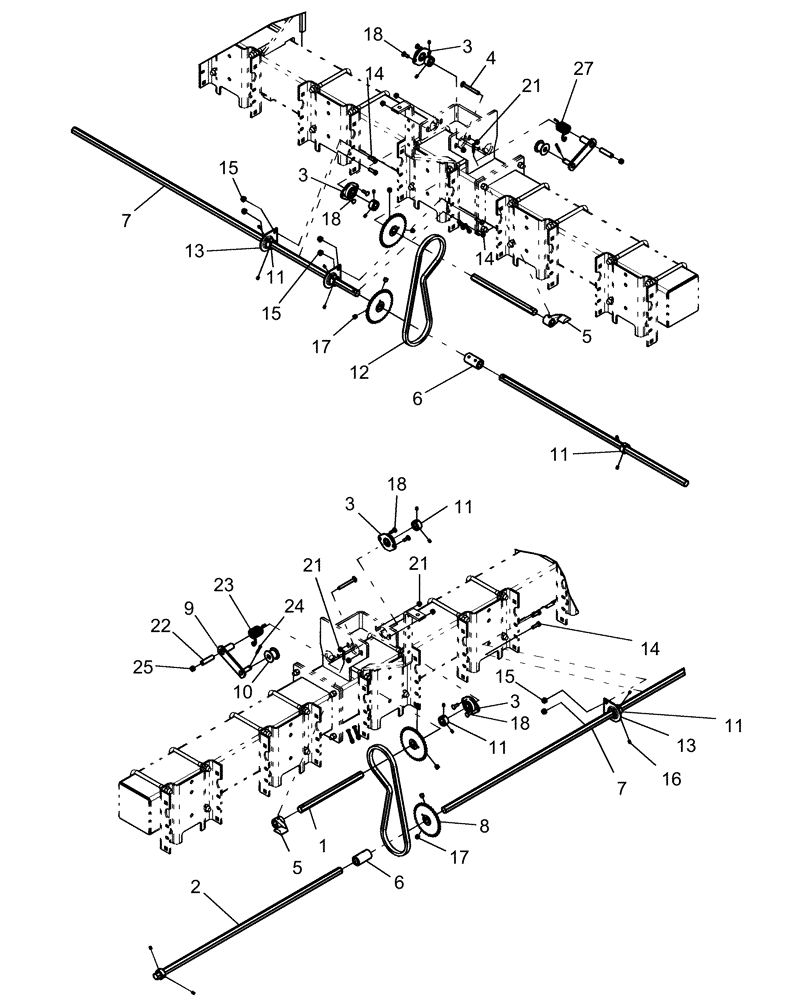

Запчасти Case IH 1260 (75.100.05[02]) - SEED DRIVE - CENTER 66 (75) - SOIL PREPARATION

1

87495544

SHAFT

hex, 22 mm x 346 mm fl

2шт.

2

84130050

SHAFT

hex, 22 mm x 1042 mm fl

2шт.

3

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

4шт.

4

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

5

87539852

COUPLING

cross over drive

2шт.

6

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

seed drive

2шт.

7

84130038

SHAFT

hex, 22 mm x 1600 mm fl

2шт.

8

353037A1

SPROCKET

34 tooth

4шт.

9

87550916

TENSIONER

chain

2шт.

10

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

11

22224

COLLAR

lock, 7/8" id

9шт.

12

84128380

CHAIN

seed drive

2шт.

13

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

3шт.

14

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

6шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

16

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

16шт.

17

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

18

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

8шт.

19

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

20

231-4144

NUT,1/4"-20, GB

4шт.

21

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

22

87505783

SLEEVE

tensioner pivot 10.33 mm id x 15.88 mm od x 60 mm long

2шт.

23

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

1шт.

24

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

25

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

26

87016635

PIN,6.35mm OD x 38.1mm L

2шт.

27

87758366

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, LH

1шт.
