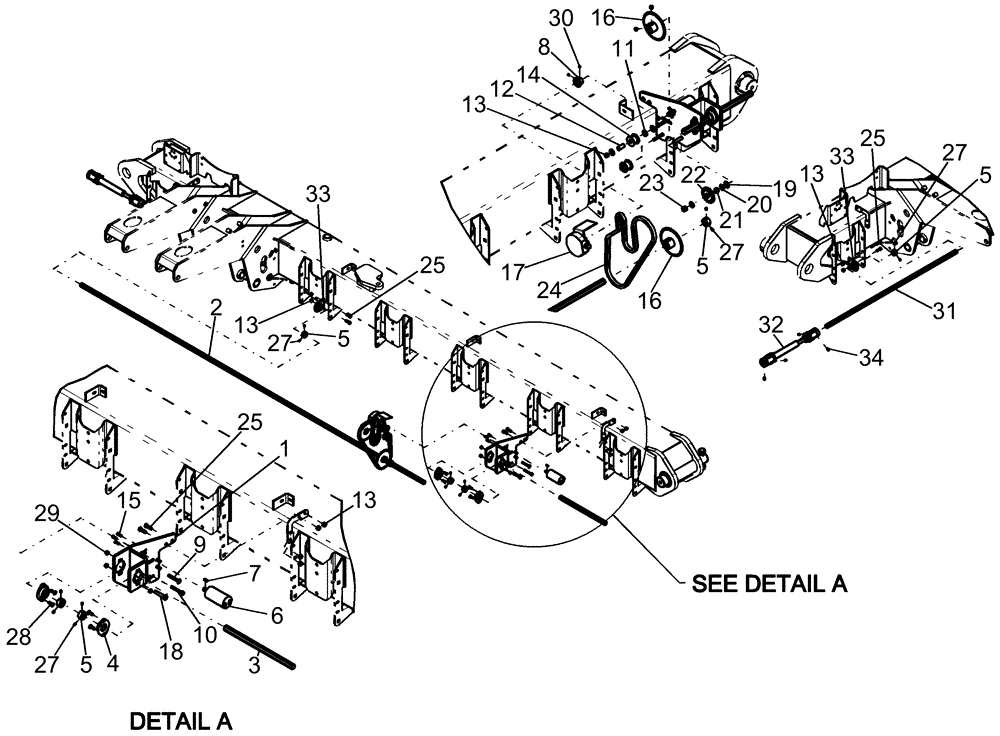

Запчасти Case IH 1260 (75.100.04) - SEED DRIVE - 80 (75) - SOIL PREPARATION

1

84170153

SUPPORT

Seed Drive LH

1шт.

1

84170148

SUPPORT

Seed Drive RH

1шт.

2

84173592

SHAFT

Hex, 22 mm x 3429 mm

1шт.

3

87495561

SHAFT

hex, 22 mm x 450 mm fl

1шт.

4

134158C92

BALL BEARING,22.5mm ID

7/8 hex flange

2шт.

5

22224

COLLAR

lock, 7/8" id

5шт.

6

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

1шт.

293288A1R

REMAN-HYD MOTOR

1260 Frnt. Fold Trling. Planter

1шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

7

86632575

KEY

3/16" Sq x 11/16" Par

1шт.

8

232893A1

SPROCKET

40 x 10

1шт.

9

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

1шт.

10

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

11

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

6шт.

12

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

2шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

10шт.

14

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

15

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

3шт.

16

353037A1

SPROCKET

34 tooth

2шт.

17

87463000

SENSOR

Assembly, Hydraulic Drive

1шт.

17

87463000

SENSOR

Assembly, Hydraulic Drive

1шт.

18

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1шт.

19

495-81024

WASHER,17/32" x 1 1/4" x .060"

1шт.

20

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531" x 1.062" x .095" HTS

2шт.

21

87302487

SPACER,13.8mm ID x 21.3mm OD x 10.3mm L

1/2" x 13/32"

1шт.

22

607779R91

DRIVE SPROCKET

idler 18T

1шт.

23

87333862

NUT

1/2"-13, GB

1шт.

24

84128381

CHAIN

seed drive

1шт.

25

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

26

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

4шт.

27

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

10шт.

28

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

29

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

30

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

2шт.

31

84173590

SHAFT

Hex, 22 mm x 1298 mm

1шт.

32

87689420

SHAFT

telescoping

1шт.

33

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

2шт.

34

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

4шт.
