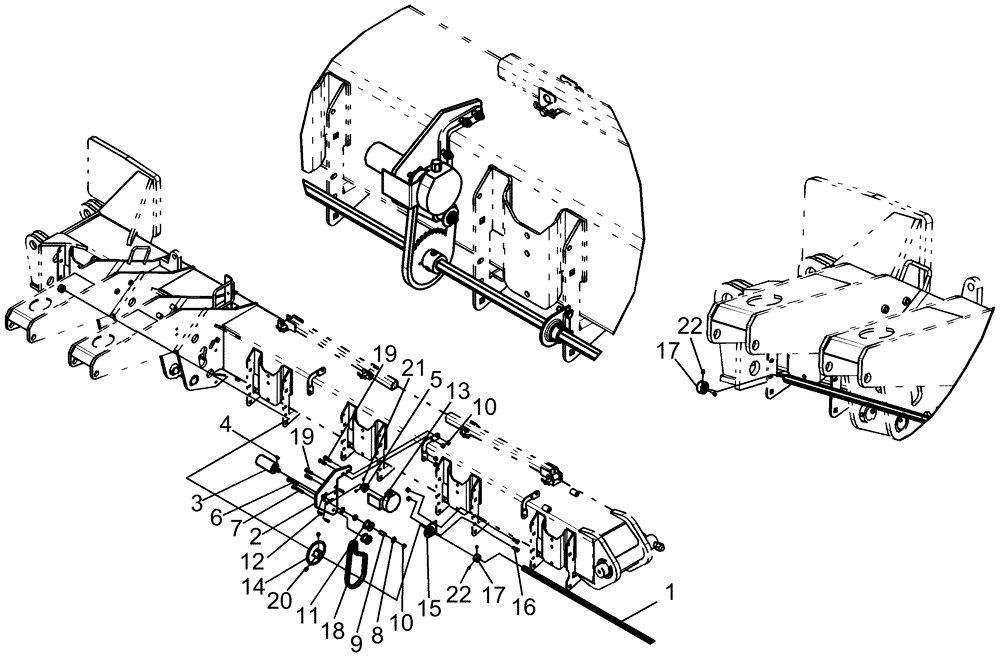

Запчасти Case IH 1260 (75.100.03) - SEED DRIVE (75) - SOIL PREPARATION

1

87495559

SHAFT

hex, 22 mm x 4100 mm fl

1шт.

2

84155885

SUPPORT

seed drive

1шт.

3

293288A1

MOTOR

31.6 cm3 (1.93 in3) displacement seed drive

1шт.

293288A1R

REMAN-HYD MOTOR

1260 Frnt. Fold Trling. Planter

1шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

4

86632575

KEY

3/16" Sq x 11/16" Par

1шт.

5

232893A1

SPROCKET

40 x 10

1шт.

6

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

1шт.

7

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

1шт.

8

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

6шт.

9

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

chain idler

2шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

11

1277726C1

ROLLER,48mm OD x 34mm L

idler

2шт.

12

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

3шт.

13

87463000

SENSOR

Assembly, Hydraulic Drive

1шт.

14

353037A1

SPROCKET

34 tooth

1шт.

15

102724A2

BALL BEARING,22.6mm ID

7/8" hex bore with hanger

1шт.

16

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

17

22224

COLLAR

lock, 7/8" id

2шт.

18

84128382

CHAIN

seed drive

1шт.

19

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

20

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

2шт.

21

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

2шт.

22

84-1256

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

4шт.
