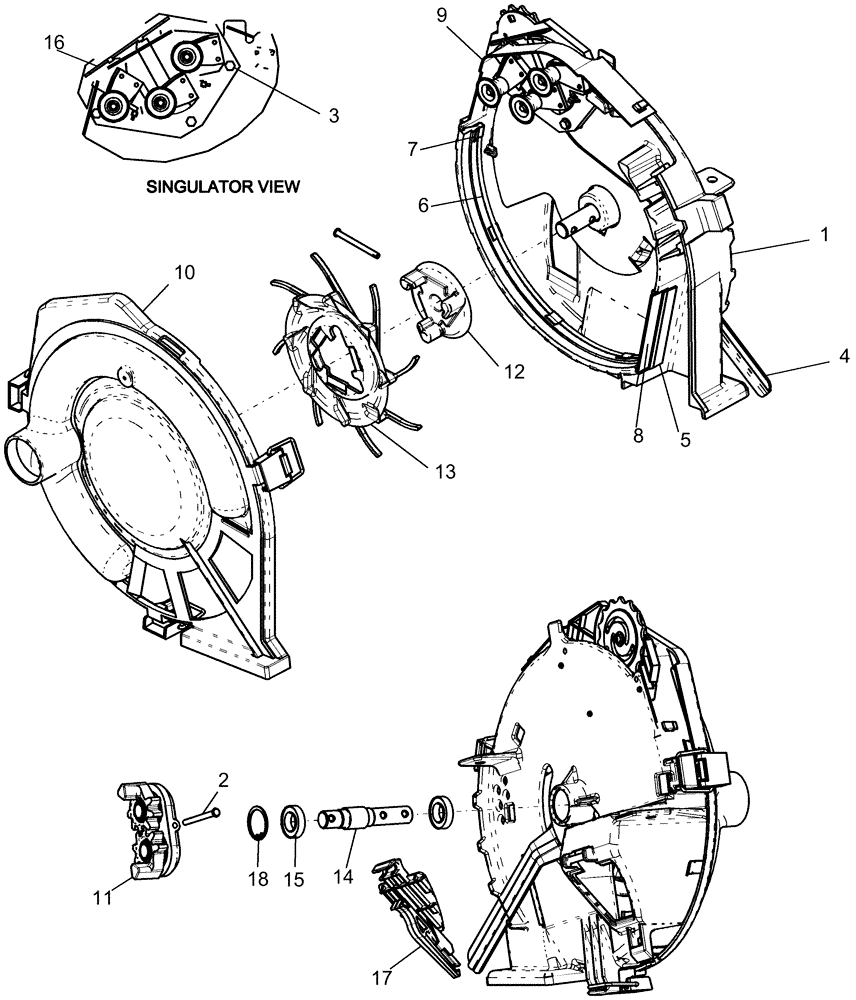

Запчасти Case IH 1260 (75.100.01) - SEED DRIVE - METER ASSEMBLY (75) - SOIL PREPARATION

1

87445992

HOUSING

seed meter

1шт.

2

84313498

HEADED PIN

Cotterless Self-Locking

2шт.

3

281-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

3шт.

4

294837A1

BAFFLE

seed shut off

1шт.

5

294924A1

CLIP

straight brush

1шт.

6

296776A1

BRUSH

annulus 24mm Bristle height

1шт.

6

84244092

BRUSH

WILL NOT WORK WITH SMALL SEEDS 20mm Bristle height

1шт.

7

296777A1

CLIP

annulus brush

4шт.

8

296783A1

BRUSH

straight

1шт.

9

300089A1

SCREEN

seed meter

1шт.

10

302238A1

COVER

latch assembly

1шт.

11

308400A4

DRIVE,Assembly, Meter Coupler

assembly, meter

1шт.

12

326923A1

ROTOR

disc

1шт.

13

326924A2

AGITATOR

seed

1шт.

14

401419A1

GEAR SHAFT

ASM meter drive

1шт.

15

401425A1

BALL BEARING,17mm ID x 30mm OD x 7mm W

sealed ball 30 mm od x 17 mm bore

2шт.

16

413842A1

HOUSING

singulator

1шт.

17

432340A1

DOOR

assembly includes seed latch

1шт.

18

301644

CIRCLIP,M30, Int

1шт.

100

84156378

ADJUSTING PLATE

seed meter

1шт.
