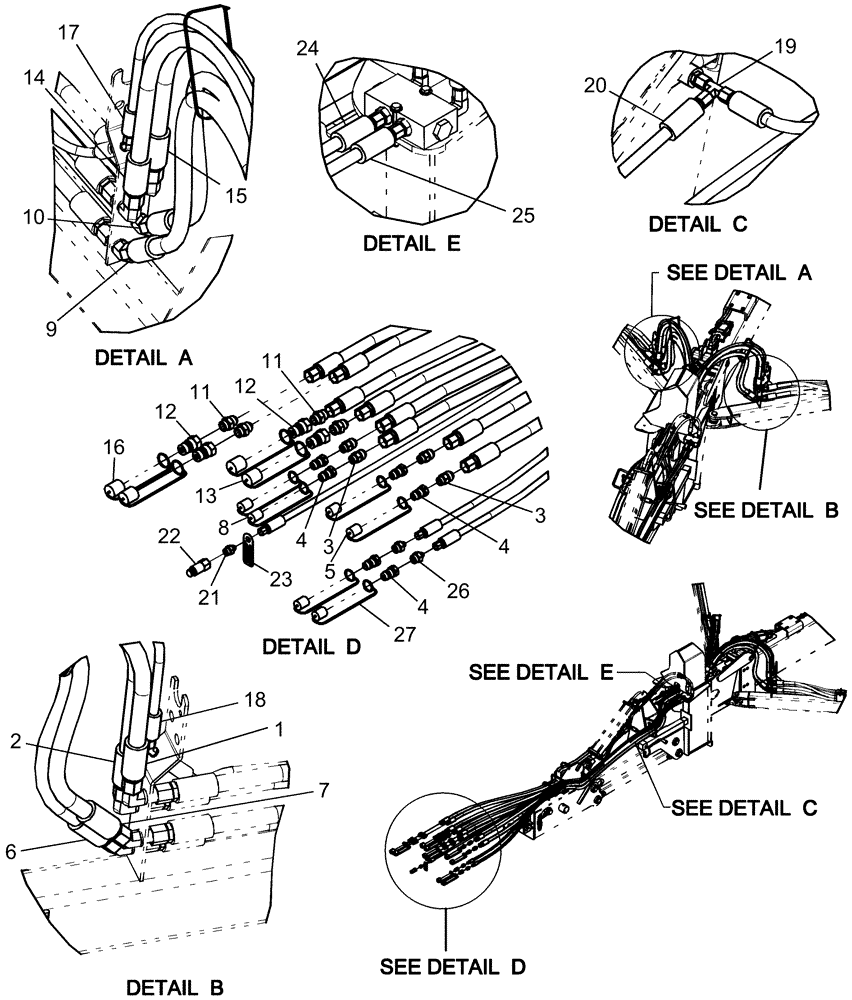

Запчасти Case IH 1260 (35.100.01[01]) - HYDRAULIC DIRECT DRIVE COLLECT (35) - HYDRAULIC SYSTEMS

1

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

2

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

3

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

4шт.

4

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

6шт.

5

333721A1

CAP

female quick coupler red

2шт.

6

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

7

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

8

333717A1

CAP

female qc blue

2шт.

9

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

10

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

11

144124

HYD CONNECTOR,1-1/16" - 12 JIC x 7/8" - 14 ORB

4шт.

12

1272399C2

QUICK MALE COUPLING

Hydr., 3/4" Male x 1-1/16" Female orb

4шт.

13

333720A1

CAP

3/4" coupler, black

2шт.

14

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

15

84158625

HYDRAULIC HOSE,19.05mm ID x 5150mm L, SAE 100R17

19 mm x 5150 mm fl

1шт.

16

333719A1

CAP

3/4" coupler, yellow

2шт.

17

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

18

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

1шт.

19

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

20

139519C2

HYDRAULIC HOSE

3/8" x 135" fl

1шт.

21

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

22

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

23

86984798

TAG

warning, case drain

1шт.

24

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

1шт.

25

1284253C1

HYDRAULIC HOSE,9.52 mm ID x 3810.00 mm

1шт.

26

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

27

333718A1

CAP

Female QC orange

2шт.
