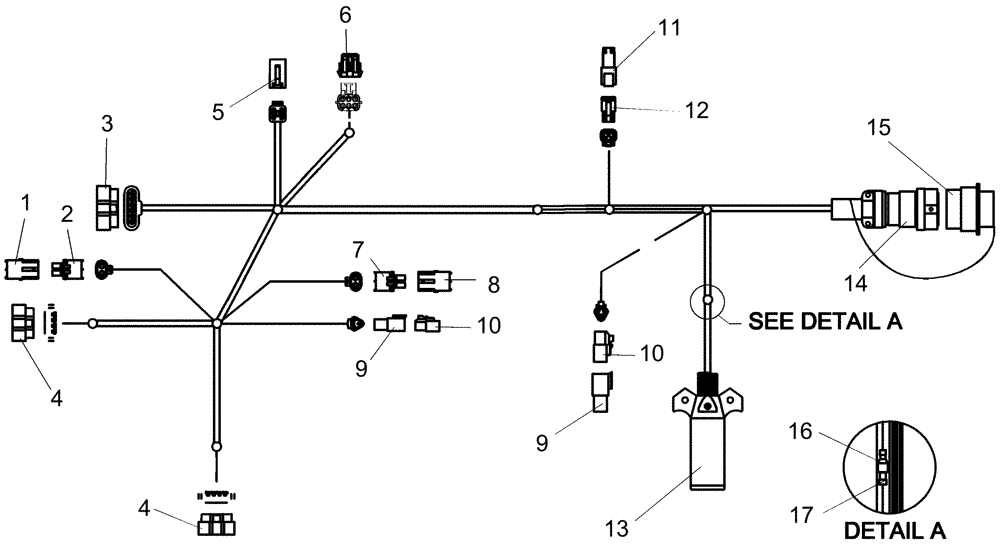

Запчасти Case IH 1260 (55.512.14[01]) - ELECTRICAL - HITCH HARNESS 60 / 66 (55) - ELECTRICAL SYSTEMS

0

87493969

HARNESS

hitch 60' / 66' / 88'

1шт.

1

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

3

87541127

ELEC CONNECTOR,Female

1шт.

4

87540289

ELEC CONNECTOR,Female

2шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

Plastic 6c Plug

1шт.

6

256348A1

ELEC CONNECTOR,Female, 6 Pin

6 Pin, Packard

1шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

8

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

9

87055165

ELEC CONNECTOR

3 cavity

2шт.

10

9842512

ELEC CONNECTOR,Female, 16

3 Junct

2шт.

11

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

12

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

13

121646C1

TERMINAL CONNECTOR,Female

metal 7c plug c/w cable protector

1шт.

14

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

15

788614

PROTECTING COVER,2" OD x 1.7" Long

dust 23 con rcp Deutsch

1шт.

16

439263A1

TERMINAL CONNECTOR,14 - 16 SAE

disc 14-16awg 1/4"

1шт.

17

225187C1

TERMINAL CONNECTOR,Male, 0.75 - 2 mm2

disc 16-14awg .25 m

1шт.
