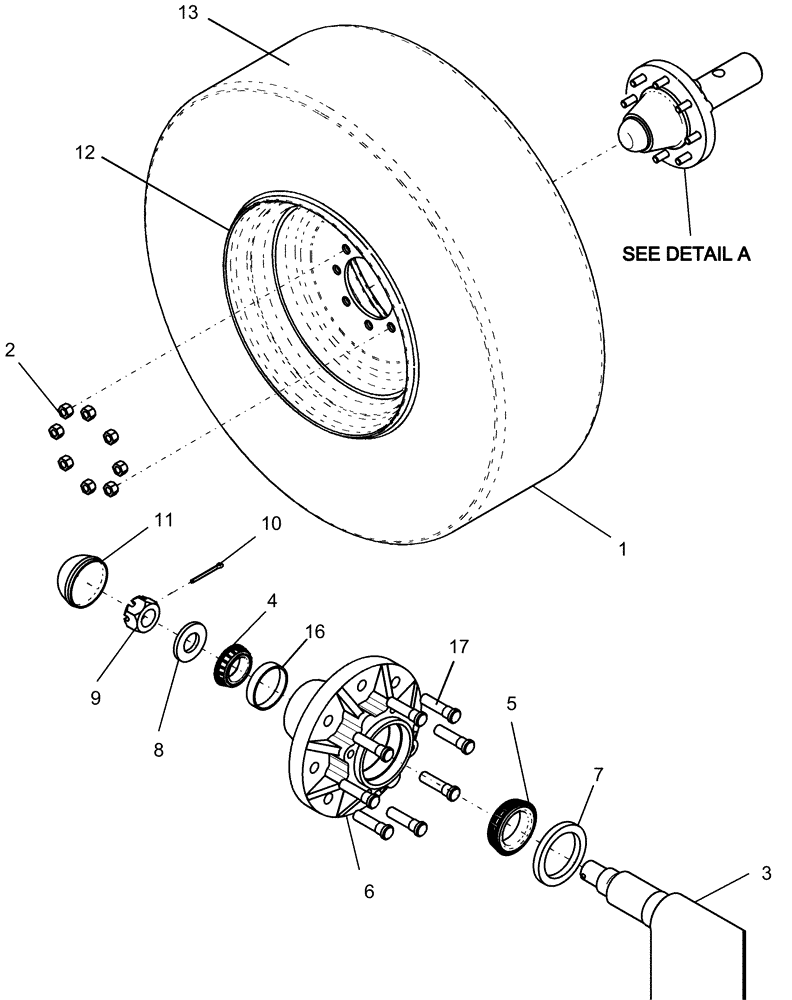

Запчасти Case IH 1260 (44.100.05) - WHEEL ASSEMBLY - STANDARD TIRE AND HUB (44) - WHEELS

1

10016226

LAND WHEEL

425/65R x 22.5, Option, Silver

1шт.

Includes ref. 12, 13, 14, 15

1шт.

2

554480R1

WHEEL NUT

hub wheel 5/8"-18, GB

8шт.

3

87671010

SPINDLE,387.16mm L

carrier 8 bolt hub

1шт.

4

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

1шт.

5

166258

BEARING CONE,2.25" ID x 0.864"

Taper STM 387A

1шт.

6

87505485

HUB

H817-4 assembly with cups & studs & nuts

1шт.

7

5044

OIL SEAL

75-88lm hub

1шт.

8

412778A1

WASHER,31.75mm ID

spindle wa23 1 1/4" id

1шт.

9

87355811

SLOTTED NUT

1 1/4"-12, G5

1шт.

10

87400

COTTER PIN,3/16" x 2"

1шт.

11

51200087

CAP

Hub H817 & 75-88LM

1шт.

12

10113223

LAND WHEEL

1шт.

13

11016221

TYRE/TIRE

425/65R x 22.5 Recapped, Truck

1шт.

14

810769C1

VALVE

tire stem VS/936

1шт.

Not Shown

1шт.

15

18534164

DECAL

Tire info

1шт.

Not Shown

1шт.

16

86512015

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

Cup & Cone

1шт.

17

2739

STUD

5/8"-18 x 2 1/2" wb46

8шт.
