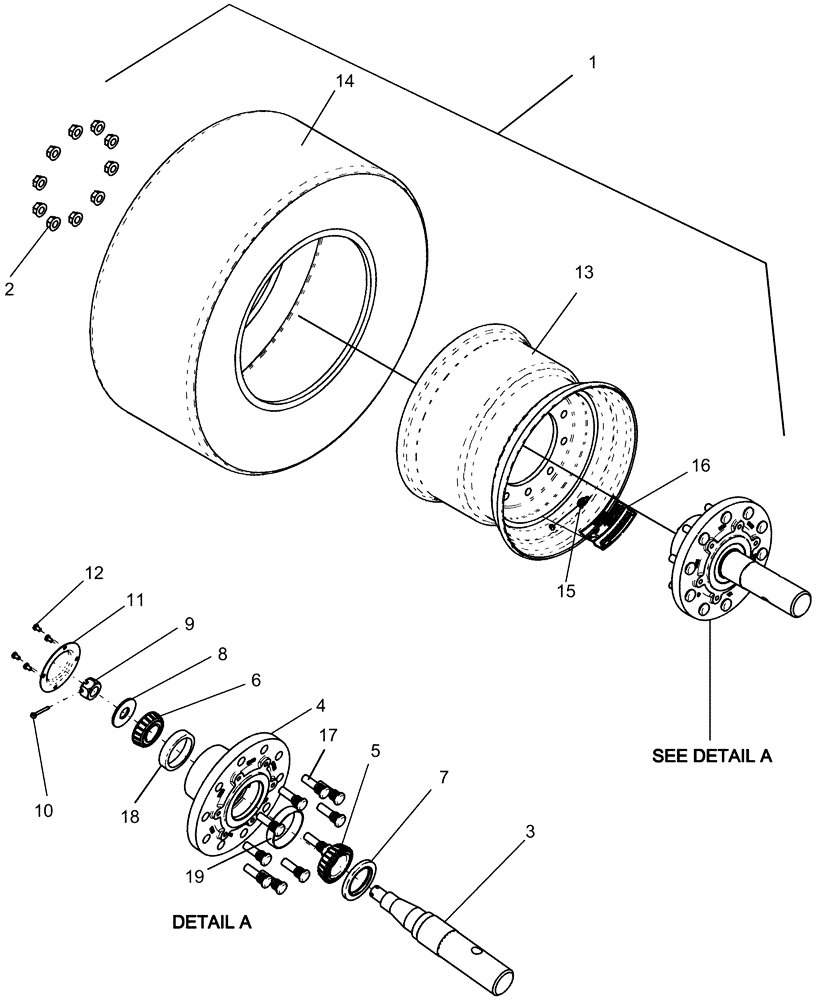

Запчасти Case IH 1260 (44.100.04) - WHEEL ASSEMBLY - HIGH FLOAT TIRE AND HUB (44) - WHEELS

1

84199191

WHEEL ASSY

445/45RX19.5 On 10BLT

1шт.

1

87492309

WHEEL ASSY

tire and rim 45, 455/55R x 22.5

1шт.

Not Shown

1шт.

2

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

3

87480051

SPINDLE

S817 - 3" x 15.24" sp

1шт.

4

84143289

HUB

H817-4 complete assembly

1шт.

5

371884A1

BEARING CONE,63.5mm ID x 30.24mm W

#39585

1шт.

6

86594308

BEARING CONE,44.45mm ID x 29.32mm W

#460

1шт.

7

619443

SEAL,76.2mm ID x 114.48mm OD x 11.89mm Thk

3.00, CR30087

1шт.

8

17952632

WASHER

3.25, Heavy

1шт.

9

87355811

SLOTTED NUT

1 1/4"-12, G5

1шт.

10

88182

COTTER PIN,1/4" OD x 2" L

1шт.

11

28487101

HUB CAP

Q871

1шт.

12

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

13

84199193

RIM

14.00X19.5 Silver, 10 Bolt

1шт.

13

87757538

RIM

19 x 22.5 10 bolt

1шт.

Not Shown

1шт.

14

NSS

NOT SOLD SEPARAT

Tire

1шт.

14

NSS

NOT SOLD SEPARAT

Tire

1шт.

Not Shown

1шт.

15

1018564

VALVE

tire stem

1шт.

16

84147105

IMPORTANT DECAL

wheel torque and tire pressure

1шт.

17

16412418

STUD

.75 x 2-9/16 Wheel

10шт.

18

21884250

BEARING CUP,107.95mm OD

#453A

1шт.

19

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

Taper Roller, Timken 39520

1шт.
