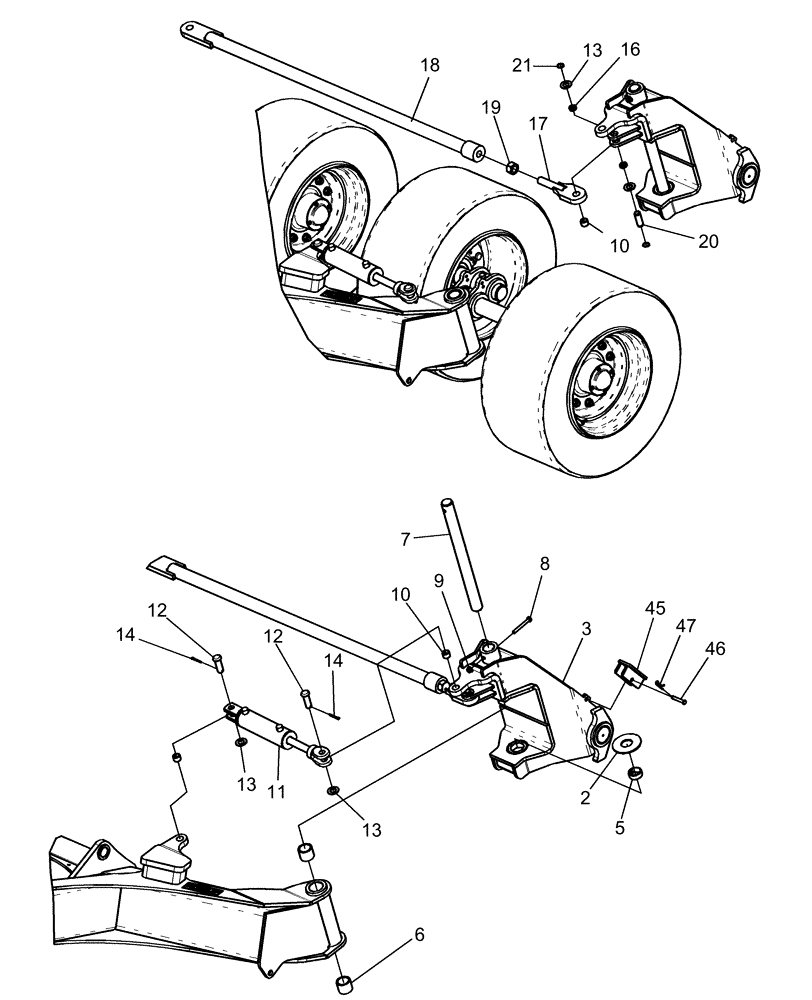

Запчасти Case IH 1260 (41.200.04[02]) - STEERING - AXLE FRAME, CARRIER 20" (41) - STEERING

2

84214987

WEAR PLATE

2шт.

3

84217796

STEERING KNUCKLE

20" LH

1шт.

5

84215008

GROOVED BUSHING

Tension 2.375 x 2 x 1" Long

2шт.

7

84204654

PIN

50.7 mm x 597 mm ul

2шт.

8

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

9

86521610

FLANGE NUT,Flg, 1/2"-13

2шт.

10

86523224

BUSHING,25.58mm ID x 32.77mm OD x 26.16mm L

tension 1 1/4" x 1" x 1" long

6шт.

11

84208578

STEERING CYLINDER

2шт.

12

86624100

HEADED PIN,1" x 3", G2

4шт.

13

86632592

WASHER,1.06" ID x 2" OD x 0.13" Thk

8шт.

14

87041

COTTER PIN,1/4" x 1 3/4"

4шт.

16

97772C1

BUSHING

tension 1 1/4" x 1" x 1/2" lg

4шт.

17

84212999

TIE-ROD

Adjustable

1шт.

18

84212997

TIE-ROD

20", Years: -01-FEB-10

1шт.

18

84305896

TIE-ROD

20", Start Year: 01-FEB-10

1шт.

19

86625082

NUT,1 1/4"-12, G5

1шт.

20

84219275

PIN

25.4 mm x 63 mm ul

2шт.

21

87019495

SNAP RING,#98, Ext

4шт.

45

84230339

SUPPORT

Cylinder Stop

2шт.

46

86979987

HEADED PIN,1/2" x 3", G5

2шт.

47

136-163

HAIR PIN COTTER,Int, 5/16" x .177

2шт.
