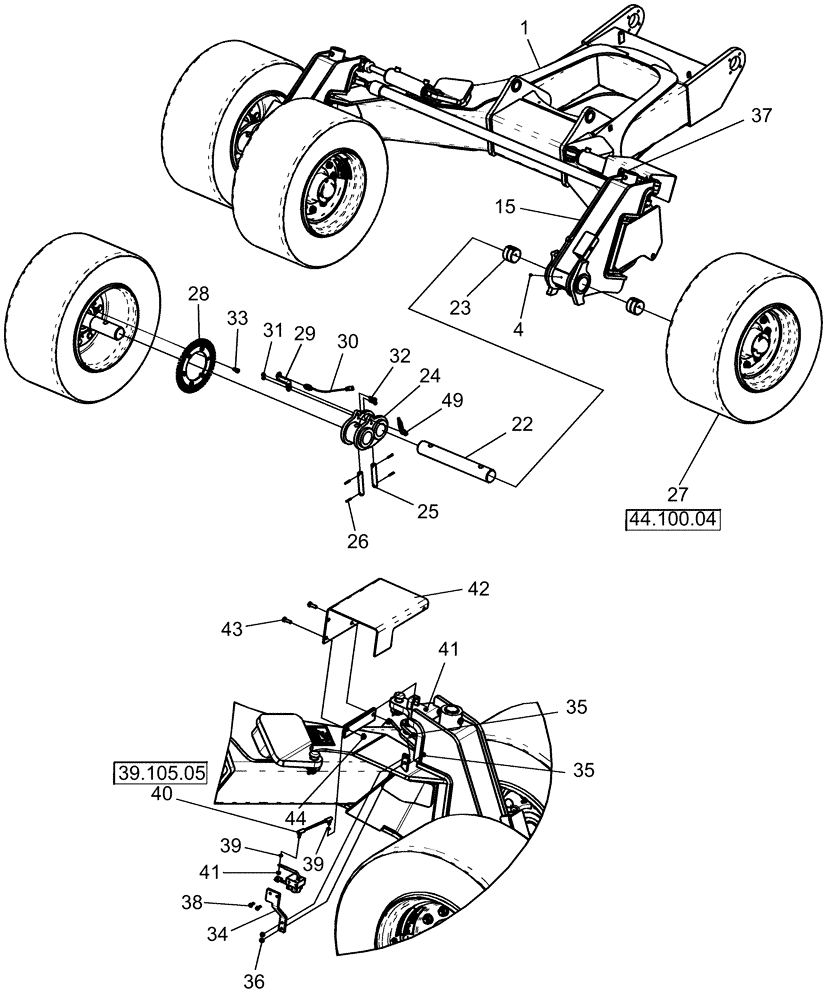

Запчасти Case IH 1260 (41.200.02[01]) - STEERING - AXLE FRAME - CARRIER 30" (41) - STEERING

1

84227946

FRAME

30" Straight Carrier With Decals

1шт.

4

87414

LUBE NIPPLE,1/4" - 28

2шт.

15

84209651

STEERING KNUCKLE

30" RH

1шт.

22

87740596

SHAFT

axle pivot 76.2 mm x 544.8 mm

2шт.

23

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

tension 3 1/4" x 3" x 2 1/2" lg

4шт.

24

87753670

SUPPORT

walk beam assembly

4шт.

25

87693681

LOCK PIN

axle shaft, 1"

8шт.

26

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

16шт.

27

NSS

NOT SOLD SEPARAT

4шт.

See Figure 44.100.04

1шт.

28

84199319

SPROCKET

Speed LC 50 Tooth, 10B

1шт.

29

87478134

BRACKET

sensor mount 10B

1шт.

30

324049A1

SENSOR

speed hall

1шт.

31

87039402

NUT,3/8"-16, GB

2шт.

32

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

33

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

6шт.

34

84211569

SUPPORT

Potentiometer

1шт.

35

280826

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

2шт.

36

523282

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

37

404202A1

SENSOR

rotary position

1шт.

38

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

39

80682

LOCK WASHER,1/4"

2шт.

40

NSS

NOT SOLD SEPARAT

1шт.

See Figure 39.105.05

1шт.

41

86509309

NUT,1/4"-28, G5

2шт.

42

84215729

SHIELD

Potentiometer Arm

1шт.

43

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

44

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

49

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
