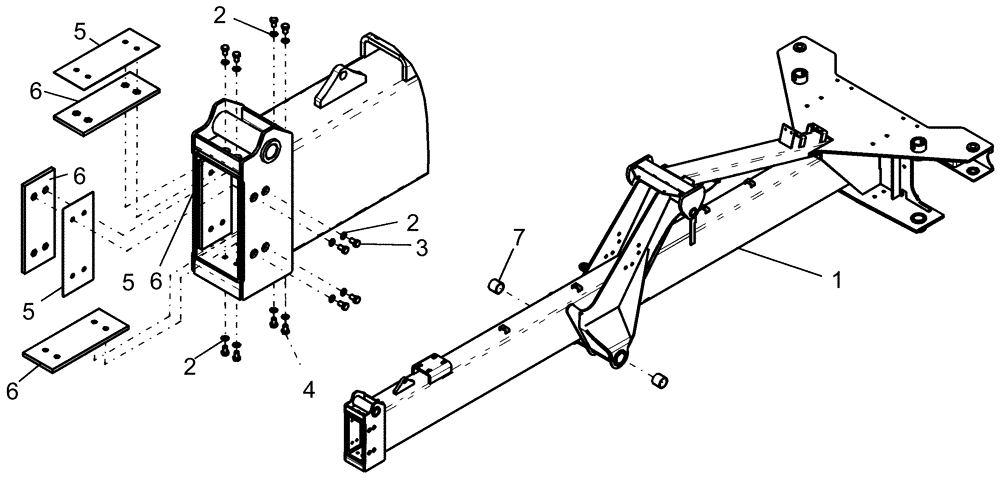

Запчасти Case IH 1260 (39.110.01) - FRAME - HITCH, SKID PADS PACKAGE (39) - FRAMES AND BALLASTING

1

84204730

HITCH

outer med assembly with decal

1шт.

2

87016230

WASHER

17/32" x 7/8" x .071"

16шт.

3

86507009

BOLT

Hex, 1/2"-13 x 5/8", G5

8шт.

4

9627879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

8шт.

5

87757688

WEAR PAD

strip shim

3шт.

6

87757689

SLIDING PAD

skid assembly

4шт.

7

87503180

BUSHING

polylube 3" x 3 1/2" x 3"

2шт.
