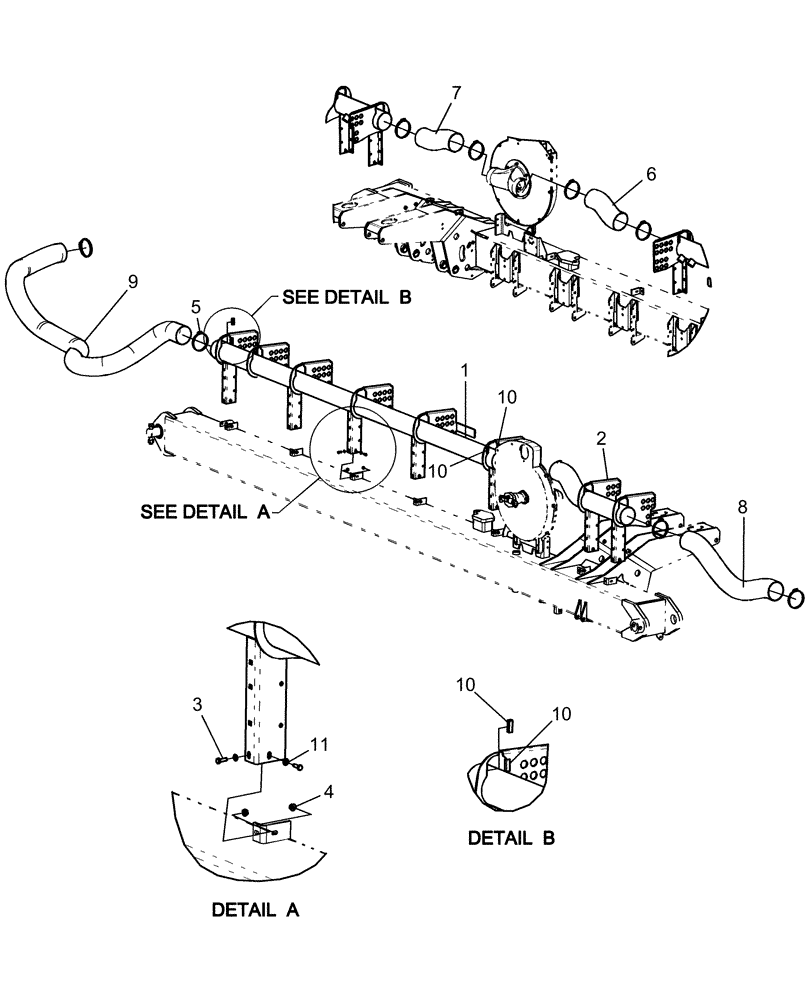

Запчасти Case IH 1260 (39.100.17[02]) - FRAME - VACUUM DELIVERY MIDWING 90 Invalid section

1

84214945

DUCT

Vacuum, Midwing Long LH

1шт.

1

84214962

DUCT

Vacuum, Midwing Long RH

1шт.

2

84126013

DUCT

vacuum, midwing outer

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

14шт.

4

145458

SERRATED NUT,5/16"-18 GR 5 ZND

14шт.

5

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

8шт.

6

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 430 mm

1шт.

7

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 550 mm

1шт.

8

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 1070 mm

1шт.

9

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 3160 mm

1шт.

10

1330108CX

SEAL,304.8mm L

4шт.

Cut to 50 mm

1шт.

11

44722S36

WASHER,5/16", .354" x .688" x .08" Thk

14шт.
