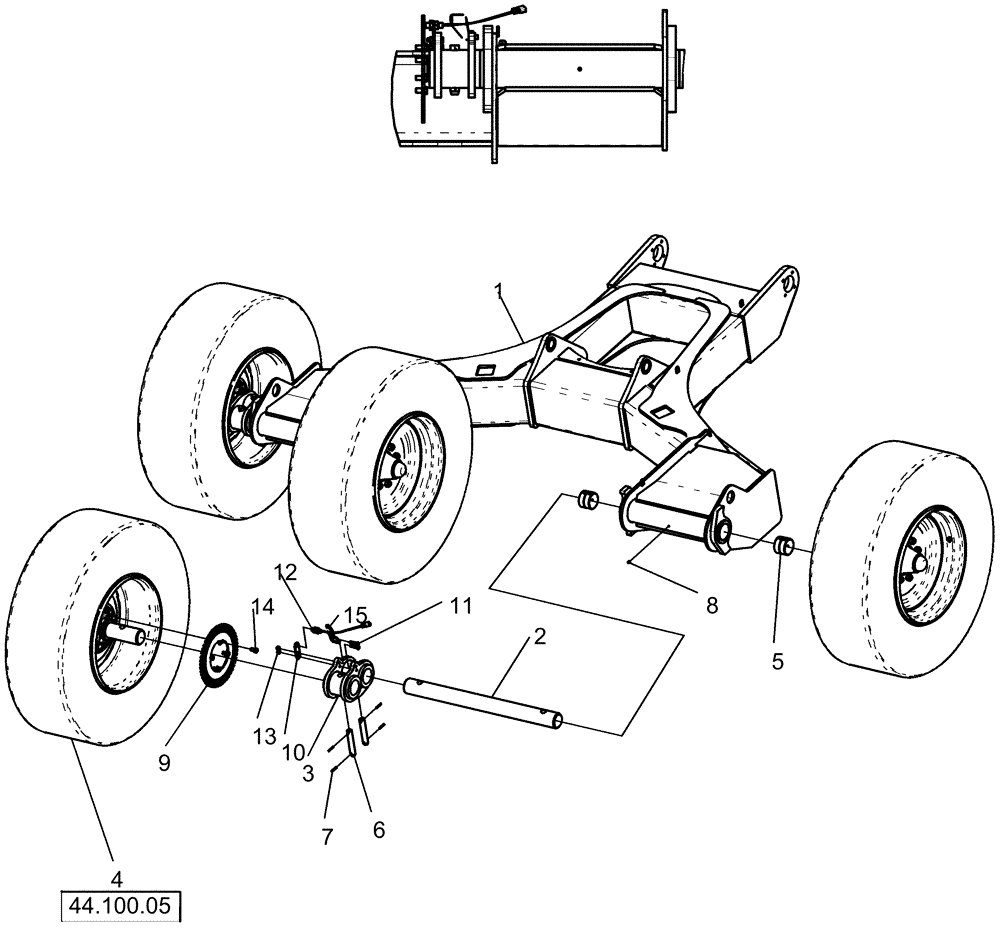

Запчасти Case IH 1260 (39.105.02[02]) - FRAME - CARRIER, WITH STANDARD 8B HUB-TIRE 22" (39) - FRAMES AND BALLASTING

1

84227933

FRAME

22" Fixed Carrier With Decals

1шт.

2

87723383

SHAFT

axle pivot 76.2 mm x 910 mm

2шт.

3

87753670

SUPPORT

walk beam assembly

4шт.

4

NSS

NOT SOLD SEPARAT

4шт.

See Figure 44.100.05

1шт.

5

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

tension 3 1/4" x 3" x 2 1/2" lg

4шт.

6

87693681

LOCK PIN

axle shaft, 1"

8шт.

7

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

16шт.

8

87414

LUBE NIPPLE,1/4" - 28

2шт.

9

84199320

SPROCKET

Speed LC 50 Tooth, 5.5B

1шт.

10

87494822

BRACKET

sensor mount 8B

1шт.

11

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

12

324049A1

SENSOR

speed hall

1шт.

13

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

14

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

15

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.
