Запчасти Case IH 1260 (39.105.01) - FRAME - CARRIER WITH HIGH FLOAT 10B HUB TIRE 22" (39) - FRAMES AND BALLASTING

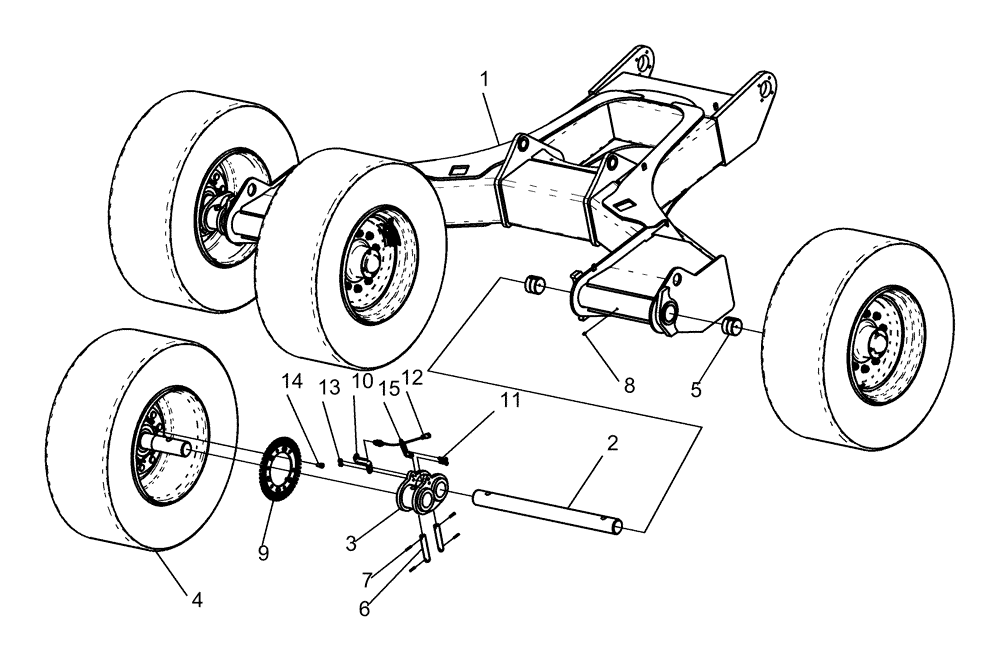

Схема запчастей Case IH 1260 - (39.105.01) - FRAME - CARRIER WITH HIGH FLOAT 10B HUB TIRE 22" (39) - FRAMES AND BALLASTING
10
11
2
3
14
15
9
1
12
7
5
6
13
8
4

Артикул

Название

Примечание

Количество

1

84227933

FRAME

22" Fixed Carrier With Decals

1шт.

2

87723383

SHAFT

axle pivot 76.2 mm x 910 mm

2шт.

3

87753670

SUPPORT

walk beam assembly

4шт.

4

NSS

NOT SOLD SEPARAT

WHEEL ASSY, HF TIRE AND HUB

4шт.

5

87419947

GROOVED BUSHING,76.45mm ID x 82.55mm OD x 63.5mm L

tension 3 1/4" x 3" x 2 1/2" lg

4шт.

6

87693681

LOCK PIN

axle shaft, 1"

8шт.

7

438-31624

PIN,6.35mm OD x 38.1mm L, Coiled

16шт.

8

87414

LUBE NIPPLE,1/4" - 28

2шт.

9

84199319

SPROCKET

Speed LC 50 Tooth, 10B

1шт.

10

87478134

BRACKET

sensor mount 10B

1шт.

11

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

12

324049A1

SENSOR

speed hall

1шт.

13

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

14

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

6шт.

15

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

Выбрано товаров: 15
