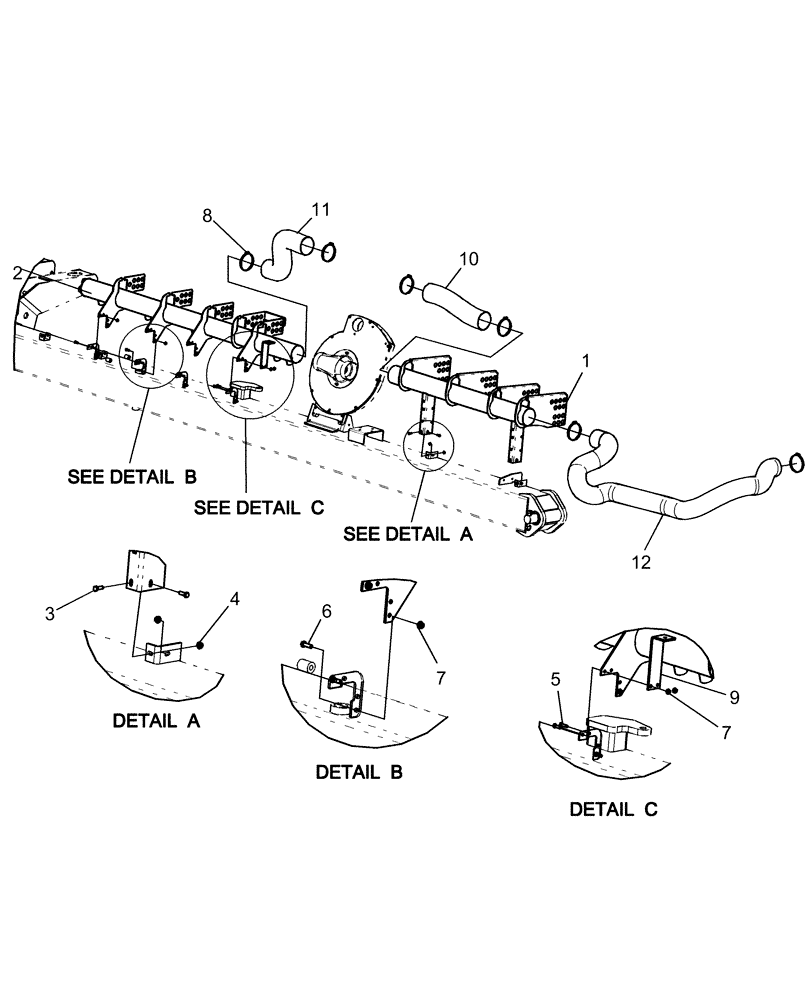

Запчасти Case IH 1260 (39.100.20) - FRAME - VACUUM SYSTEM (39) - FRAMES AND BALLASTING

1

84215026

DUCT

Vacuum Outlet With Decal RH

1шт.

2

84215034

DUCT

Vacuum Outlet With Decal RH

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

4

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

6

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

7шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

9шт.

8

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

6шт.

9

84202599

MOUNT

hydraulic hose support

1шт.

10

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 700 mm

1шт.

11

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 950 mm

1шт.

12

86988929

INTAKE AIR HOSE

6" flex bulk item

1шт.

Cut to 2760 mm

1шт.
