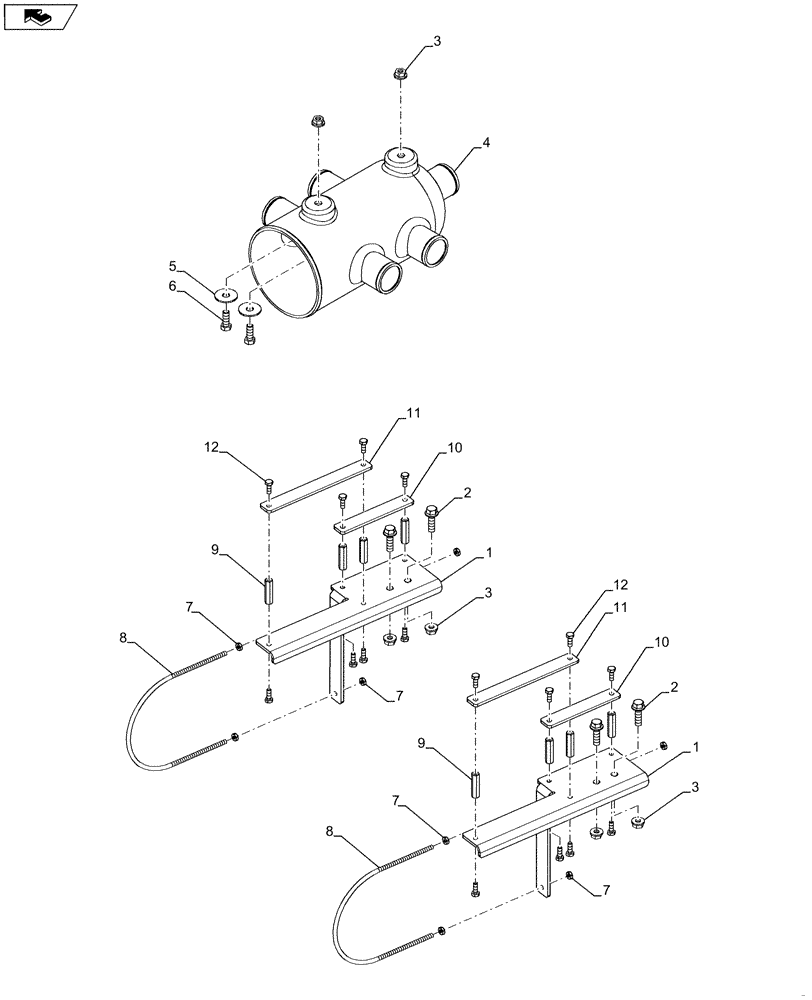

Запчасти Case IH 1260 (39.100.19) - FRAME - VACUUM DELIVERY CENTER (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

SUPPORT, vacuum, hydraulic hose

2шт.

2

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

3

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

4

84201590

CHUTE

Inner Vacuum

1шт.

5

86625243

WASHER,0.44" ID x 1.38" OD x 0.08" Thk

2шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

87317425

JAM NUT

.250-20 GR5 ZND

8шт.

8

84125926

U-BOLT

6.35 x 183.8 x 160 ID

2шт.

9

84378633

NUT

Coupler 1/4 UNC x 1.75

8шт.

10

NSS

NOT SOLD SEPARAT

SUPPORT, Hose Clamp

2шт.

11

NSS

NOT SOLD SEPARAT

SUPPORT, Hose Clamp

2шт.

12

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

16шт.
