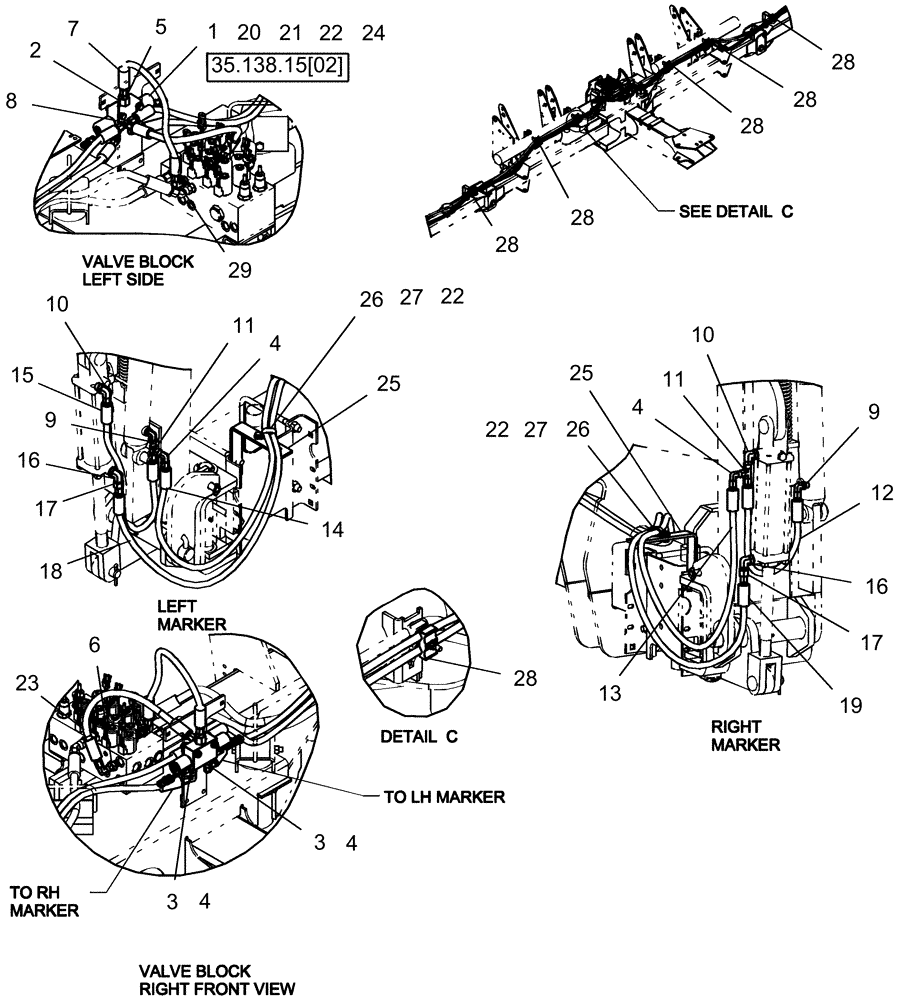

Запчасти Case IH 1250 (35.739.03) - HYDRAULICS - HOSE ROUTING - MARKER - 12 ROW (35) - HYDRAULIC SYSTEMS

1

87463248

VALVE

assembly, marker

1шт.

2

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

5/8" mb x 1/2" fb

1шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

4

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

5шт.

5

1263477C3

HYD CONNECTOR

union restrictor

1шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

7

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

1шт.

8

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

9

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

10

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

11

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

12

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

3/8" x 17" fl

1шт.

13

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8" x 225" coiled

1шт.

14

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

3/8" x 225" coiled

1шт.

15

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

16

1277964C1

ELBOW

90º 1/2" mj x 1/2" mb .052 orifice

2шт.

17

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

18

129764C2

HYDRAULIC HOSE

3/8" x 215" fl

1шт.

19

129764C2

HYDRAULIC HOSE

3/8" x 215" fl

1шт.

20

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

21

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

22

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

23

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

1шт.

24

9625178

PLUG,9/16" - 18 ORB

1шт.

25

87496596

BRACKET

support

2шт.

26

22510700

HOSE CLAMP,15.86mm

cushioned

2шт.

27

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

87482623

CLAMP

agriculture large

6шт.

29

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.
