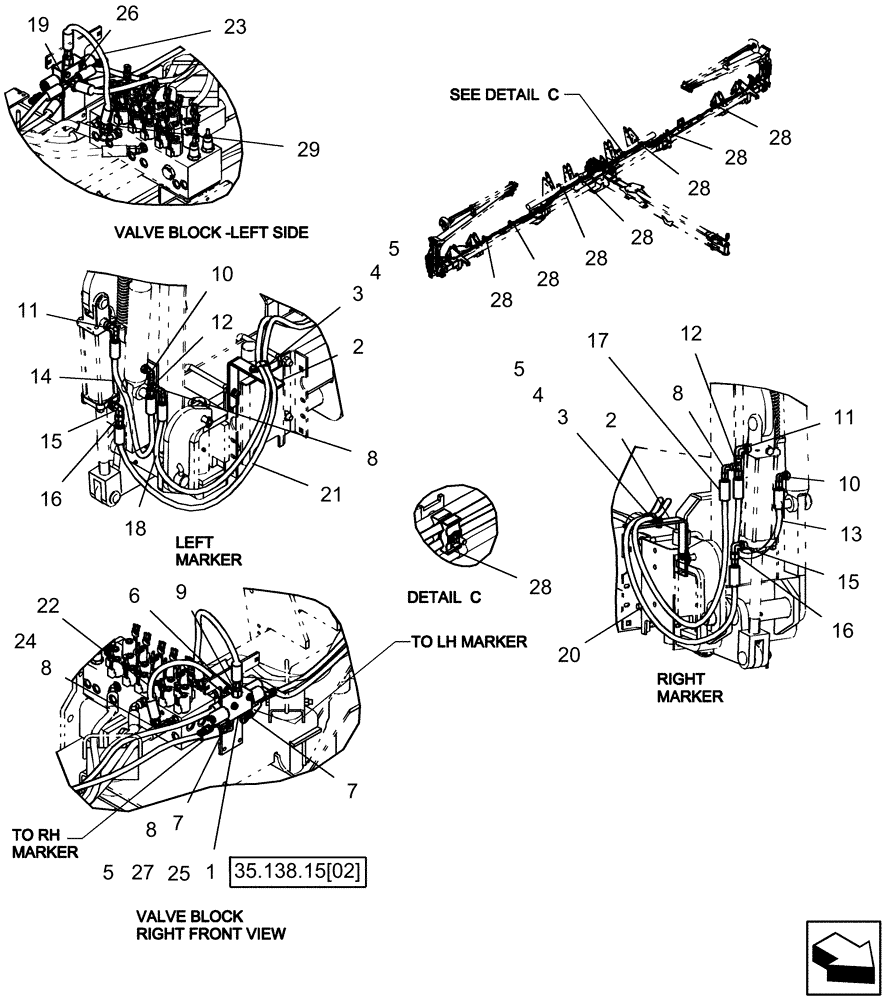

Запчасти Case IH 1250 (35.739.02[02]) - HYDRAULICS - HOSE ROUTING - MARKER - 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

87463248

VALVE

assembly, marker

1шт.

2

87496596

BRACKET

support

2шт.

3

22510700

HOSE CLAMP,15.86mm

cushioned

2шт.

4

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

6

84323487

HYD CONNECTOR,7/8"-14 x 3/4"-16 ORB

5/8" mb x 1/2" fb

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

8

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

5шт.

9

1263477C3

HYD CONNECTOR

union restrictor

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

11

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

12

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

13

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

3/8" x 17" fl

1шт.

14

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

15

1277964C1

ELBOW

90º 1/2" mj x 1/2" mb .052 orifice

2шт.

16

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

17

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

18

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

19

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

20

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

21

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

3/8" x 275" fl

1шт.

22

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

3/8" x 19" fl

1шт.

23

1251872C2

HYDRAULIC HOSE

3/8" x 23" fl, 3/8" fjic x 3/8" fjic

1шт.

24

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

25

9625178

PLUG,9/16" - 18 ORB

1шт.

26

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

27

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

28

87482623

CLAMP

agriculture large

8шт.

29

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.
