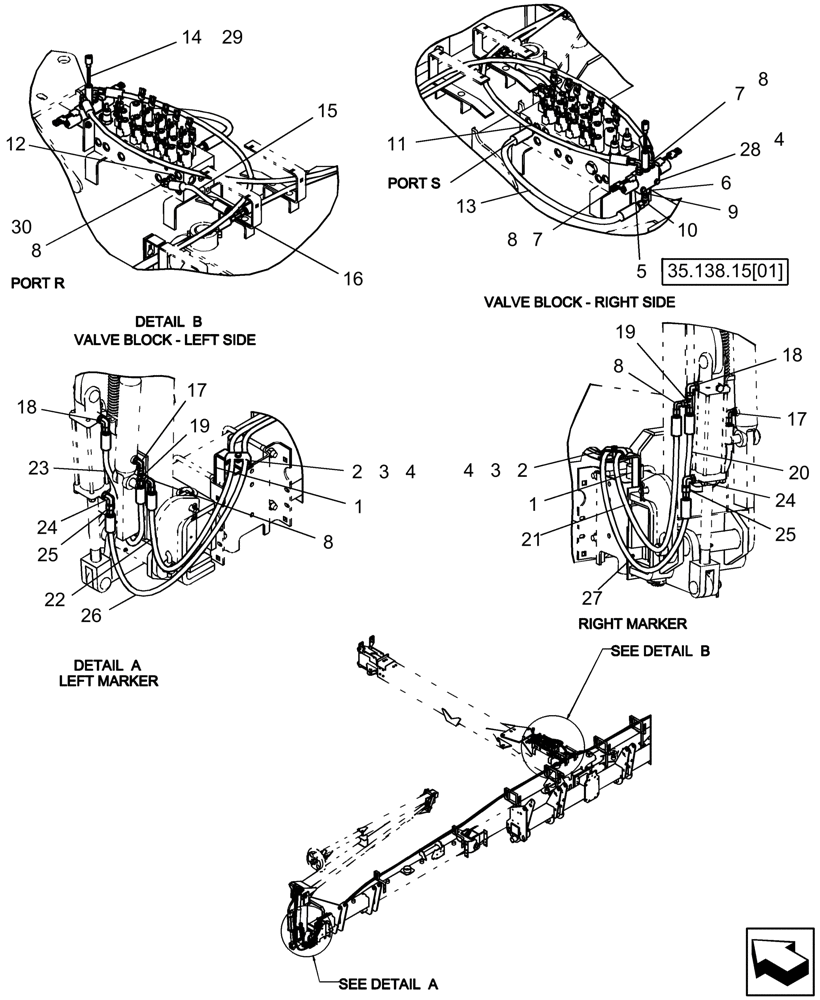

Запчасти Case IH 1250 (35.739.02[01]) - HYDRAULICS - HOSE ROUTING - MARKER - 16 ROW BSN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

87673203

BRACKET

marker hose

2шт.

2

427781A1

HOSE CLAMP

2 hose

2шт.

3

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

5

87463248

VALVE

assembly, marker

1шт.

6

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

5/8" mb x 1/2" fb

1шт.

7

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

8

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

5шт.

9

1263477C3

HYD CONNECTOR

union restrictor

1шт.

10

87668383

ELBOW

90º 1/2" mj x 3/8" fj

1шт.

11

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

12

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

13

90875C1

HYDRAULIC HOSE

1/2" x 29" (735 mm) fl

1шт.

14

1547188C1

SWITCH

pressive inv

1шт.

15

1284323C1

HYDRAULIC HOSE

3/8" x 15" (380 mm)

1шт.

16

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

18

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

19

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

20

598931R91

HYDRAULIC HOSE,9.65 mm ID x 431.80 mm, SAE 100R1

3/8" x 17" fl

1шт.

21

1284266C1

HYDRAULIC HOSE

3/8" x 305" fl

1шт.

22

1284266C1

HYDRAULIC HOSE

3/8" x 305" fl

1шт.

23

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

24

1277964C1

ELBOW

90º 1/2" mj x 1/2" mb .052 orifice

2шт.

25

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

26

1284260C1

HYDRAULIC HOSE

3/8" x 265" fl

1шт.

27

1284260C1

HYDRAULIC HOSE

3/8" x 265" fl

1шт.

28

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

29

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

1шт.

30

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.
