Запчасти Case IH 1250 (35.720.01[02]) - HYDRAULICS - DRIVE TRANSMISSION - 24 ROW, MODEL YEAR 2012 (35) - HYDRAULIC SYSTEMS

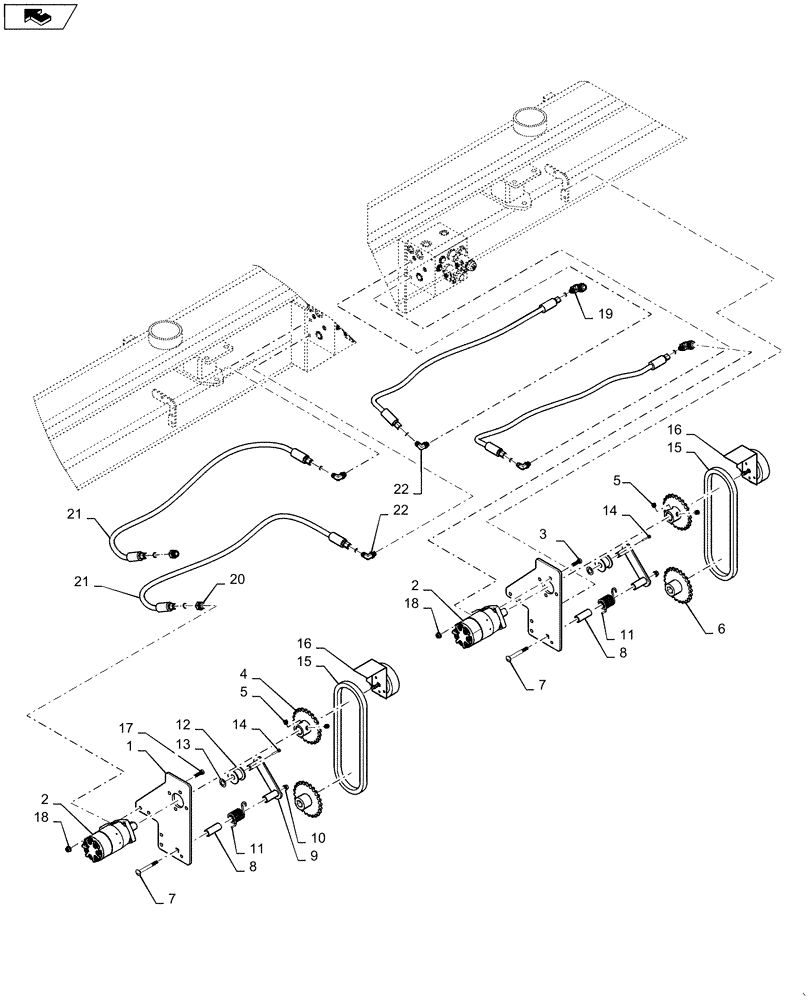

Схема запчастей Case IH 1250 - (35.720.01[02]) - HYDRAULICS - DRIVE TRANSMISSION - 24 ROW, MODEL YEAR 2012 (35) - HYDRAULIC SYSTEMS
16
5
7
11
1
4
5
16
20
21
3
2
17
home
14
2
22
13
8
22
15
10
6
14
7
9
18
12
8
21
15
18
11
19

Артикул

Название

Примечание

Количество

1

84371159

PLATE

Hydraulic Seed Drive

2шт.

2

87752460

HYDRAULIC MOTOR

Seed Drive

2шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

4

87694455

SPROCKET

24T

2шт.

5

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

6

87503169

SPROCKET

24T, 50 Chain

2шт.

7

280348

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3 1/2", Gr 5

2шт.

8

87505783

SLEEVE

Tensioner Pivot

2шт.

9

87550916

TENSIONER

Chain

2шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

11

87505794

TORSION SPRING

idler, 4.7123mm dia. x 42.7 coil length, 8 coils, RH

2шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

Idler

2шт.

13

86624154

WASHER,0.66" ID x 1.12" OD x 0.05" Thk

2шт.

14

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

15

84370996

CHAIN

IND. 50, 61 Links, 1 Connector, 38.75 Long, Seed Drive

2шт.

16

87495545

SENSOR

Hydraulic Drive

2шт.

17

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

18

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

19

86512937

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

20

525646

HYD CONNECTOR,7/8" - 14 ORB x 9/16" - 18 JIC

2шт.

21

1284301C1

HYDRAULIC HOSE

3/8 x 225"

4шт.

22

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

Выбрано товаров: 22
