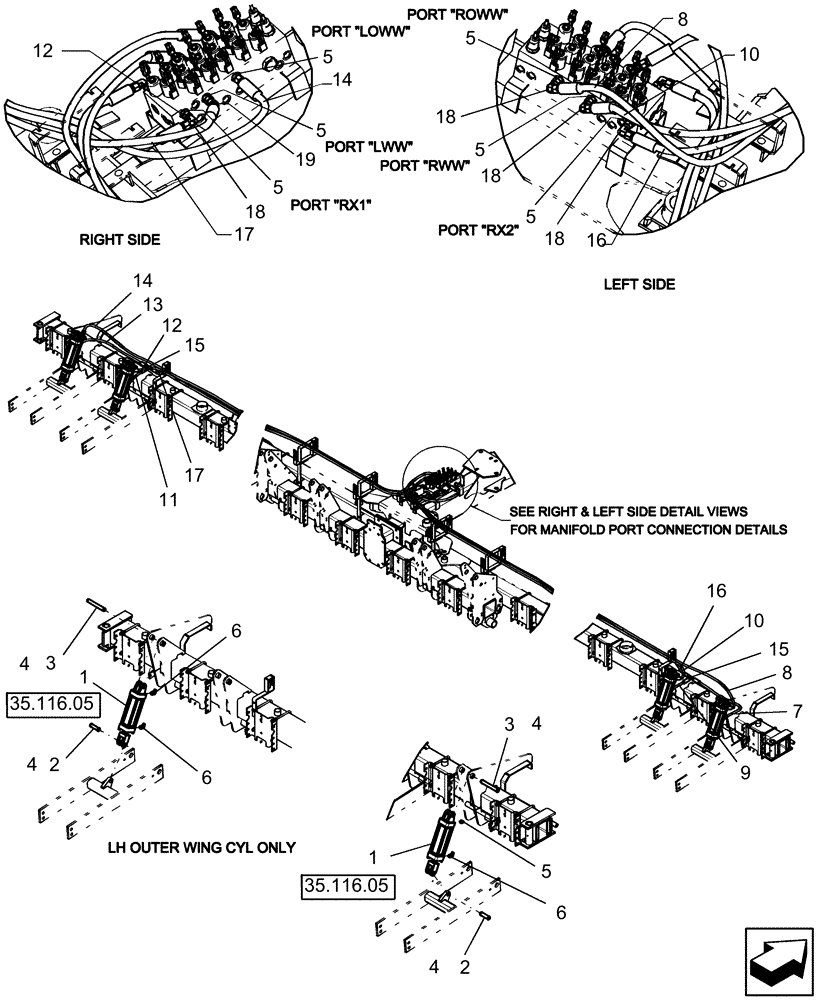

Запчасти Case IH 1250 (35.580.02[01]) - HYDRAULICS - WING WHEEL - 16 ROW BSN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

87603016

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" slave

4шт.

2

87604817

PIN

25.4 mm x 79.2 mm ul

4шт.

3

87604818

PIN

25.4 mm x 139.4 mm ul

4шт.

4

87019495

SNAP RING,#98, Ext

16шт.

5

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

9шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

5шт.

7

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

8

87655965

HYDRAULIC HOSE

1/2" x 260"

1шт.

9

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

1шт.

10

134213A1

HYDRAULIC HOSE

1/2" x 220" fl

1шт.

11

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

1шт.

12

134213A1

HYDRAULIC HOSE

1/2" x 220" fl

1шт.

13

31-1228

HYDRAULIC HOSE

1/2" x 1145 mm fl

1шт.

14

87655965

HYDRAULIC HOSE

1/2" x 260"

1шт.

15

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

16

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

17

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

18

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

4шт.

19

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.
