Запчасти Case IH 1250 (35.580.01) - HYDRAULICS - WING WHEEL - 24 ROW (35) - HYDRAULIC SYSTEMS

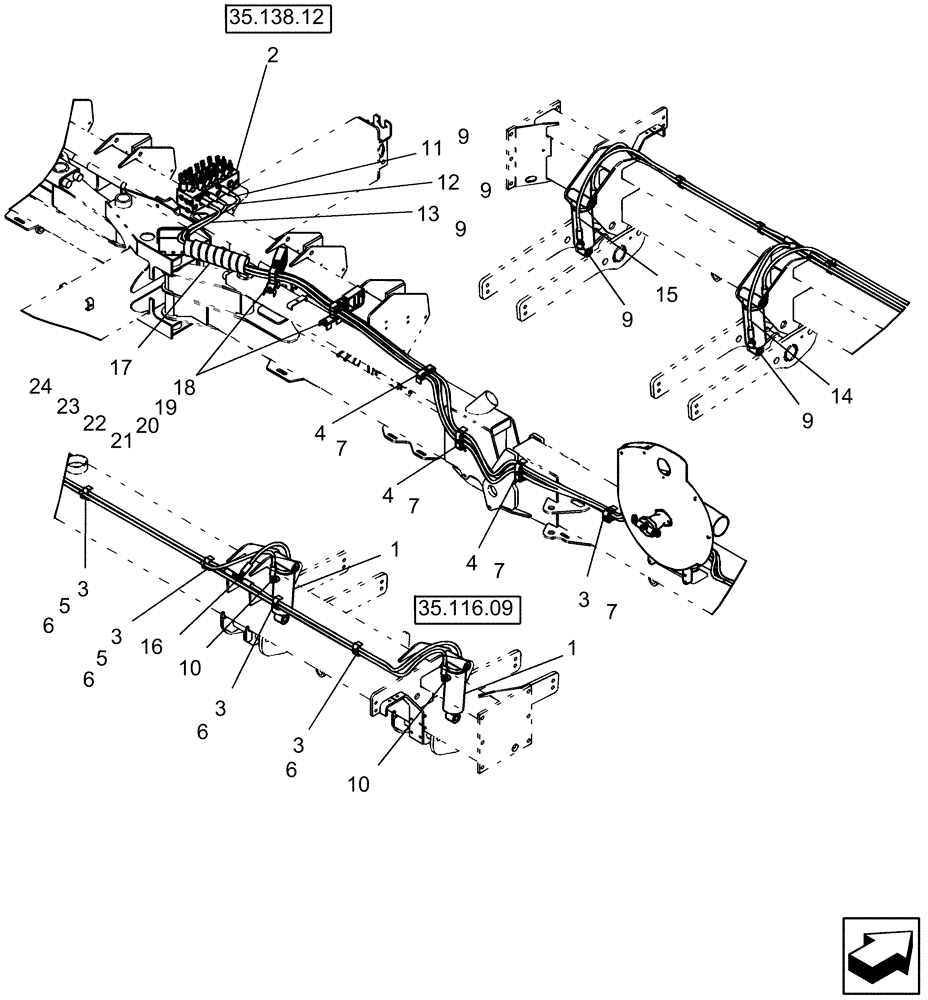

Схема запчастей Case IH 1250 - (35.580.01) - HYDRAULICS - WING WHEEL - 24 ROW (35) - HYDRAULIC SYSTEMS
9
22
5
35.116.09
35.138.12
4
24
18
6
7
7
7
4
2
10
17
1
3
6
5
9
20
4
12
19
3
16
10
3
23
11
13
21
3
9
3
6
9
15
7
1
14
6
9

Артикул

Название

Примечание

Количество

1

87462743

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 175.26mm Stroke

4 1/4" x 6 7/8" slave

2шт.

2

87552897

VALVE

assembly, lift and fold

1шт.

3

427781A1

HOSE CLAMP

2 hose

7шт.

4

87545575

HOSE CLAMP

6шт.

5

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

2шт.

6

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

4шт.

7

86977730

SERRATED SCREW,3/8" - 16 x 2 1/2"

FG 3/8"-16 x 2 1/2", G5

4шт.

9

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

4шт.

10

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

11

87537225

HOSE

1/2" x 390" fl

1шт.

12

411929A1

HYDRAULIC HOSE

1/2" x 330" (8380 mm) fl

1шт.

13

245606A1

HYDRAULIC HOSE

1/2" x 310" (7875 mm) fl

1шт.

14

91160C1

HYDRAULIC HOSE,12.70 mm ID x 1090.00 mm, SAE 100R1

1шт.

15

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

16

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

17

87500092

HOSE PROTECTION

Sleeve Wrap 35'

1шт.

18

87583059

BRACKET

bulk fill hose routing

2шт.

19

87583058

RETAINER

hose

2шт.

20

87500057

HOSE CLAMP

8шт.

21

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

22

86505980

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

2шт.

23

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

24

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.
