Запчасти Case IH 1250 (35.310.04[02]) - HYDRAULICS - SUPPLY & RETURN HOSES - 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

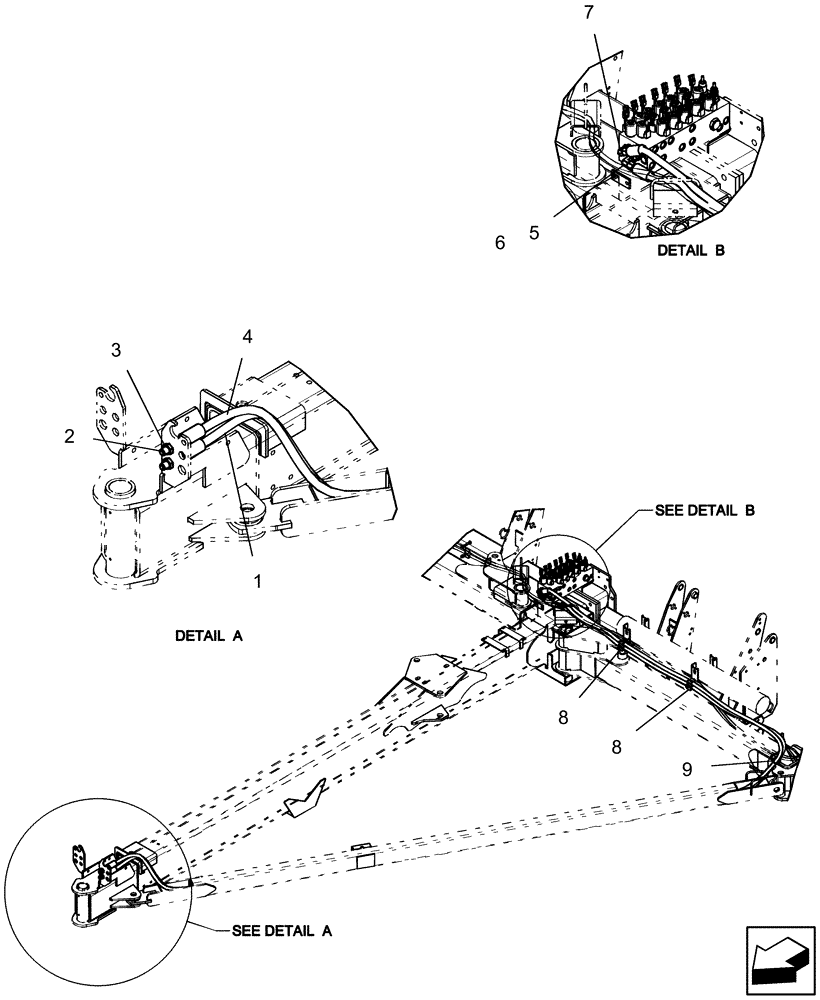

Схема запчастей Case IH 1250 - (35.310.04[02]) - HYDRAULICS - SUPPLY & RETURN HOSES - 16 ROW ASN Y9S007001 (35) - HYDRAULIC SYSTEMS
1
8
7
2
8
9
4
6
5
3

Артикул

Название

Примечание

Количество

1

84127521

HYDRAULIC HOSE

5/8" x 319" fl

1шт.

2

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

3

595460

BHD LOCK NUT,7/8" - 14

2шт.

4

84127521

HYDRAULIC HOSE

5/8" x 319" fl

1шт.

5

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

6

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.

7

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

8

87482623

CLAMP

agriculture large

2шт.

9

87557084

CABLE TIE,14"

CABLE STRAP 14" with stainless locking clip

1шт.

Выбрано товаров: 9
