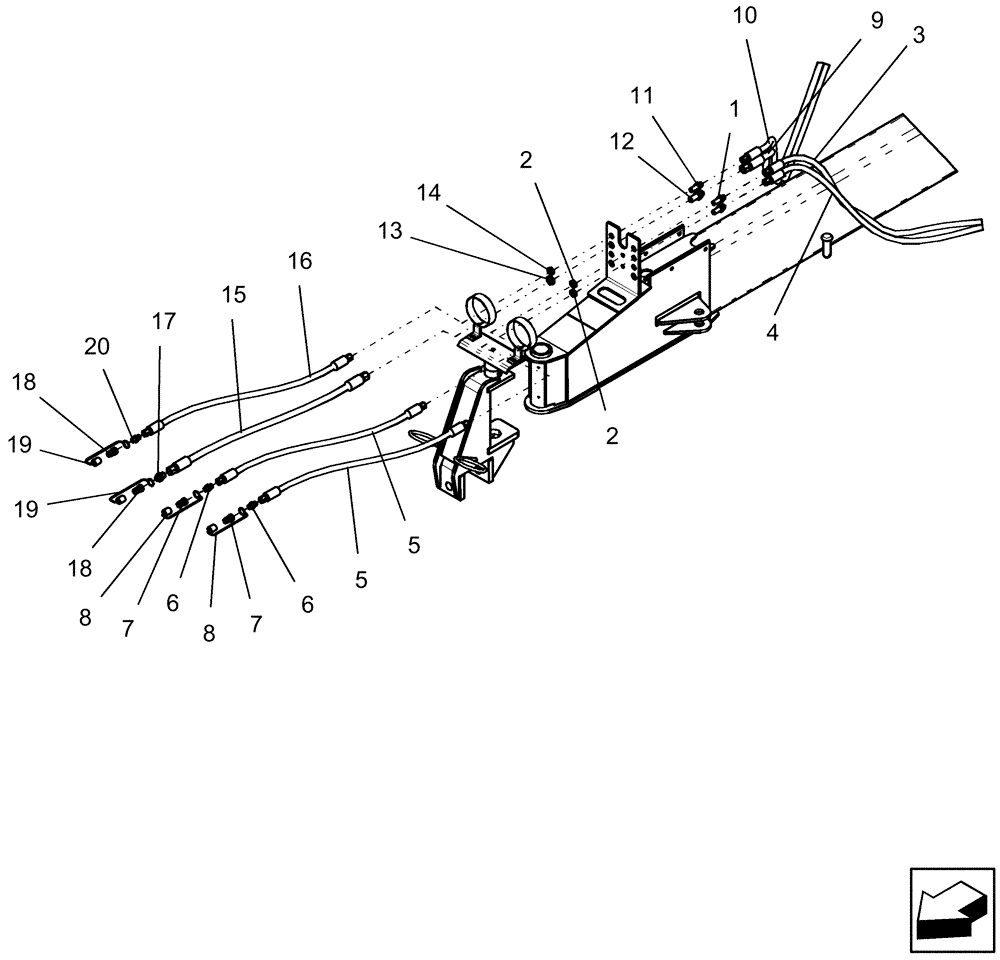

Запчасти Case IH 1250 (35.310.02[02]) - HYDRAULICS - SUPPLY & RETURN HOSES, 24 ROW BULK FILL, DRAWBAR HITCH AND DIRECT DRIVE ASN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

2

595460

BHD LOCK NUT,7/8" - 14

2шт.

3

87590180

HYDRAULIC HOSE,16mm ID x 11580mm L, SAE 100R17

16 mm x 11580 mm fl

1шт.

4

87590180

HYDRAULIC HOSE,16mm ID x 11580mm L, SAE 100R17

16 mm x 11580 mm fl

1шт.

5

87580895

HYDRAULIC HOSE,16mm ID x 2720mm L, SAE 100R17

16 mm x 2720 mm fl

2шт.

6

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

7

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

8

333721A1

CAP

female quick coupler red

2шт.

9

87589844

HYDRAULIC HOSE,19mm ID x 13840mm L, SAE 100R17

19 mm x 13840 mm fl

1шт.

10

87589826

HYDRAULIC HOSE,16mm ID x 13840mm L, SAE 100R17

16 mm x 13840 mm fl

1шт.

11

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

12

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

13

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

14

595460

BHD LOCK NUT,7/8" - 14

1шт.

15

87580893

HYDRAULIC HOSE,19.05mm ID x 2720mm L, SAE 100R17

19 mm x 2720 mm fl

1шт.

16

87580895

HYDRAULIC HOSE,16mm ID x 2720mm L, SAE 100R17

16 mm x 2720 mm fl

1шт.

17

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

18

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

19

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

20

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

1шт.
