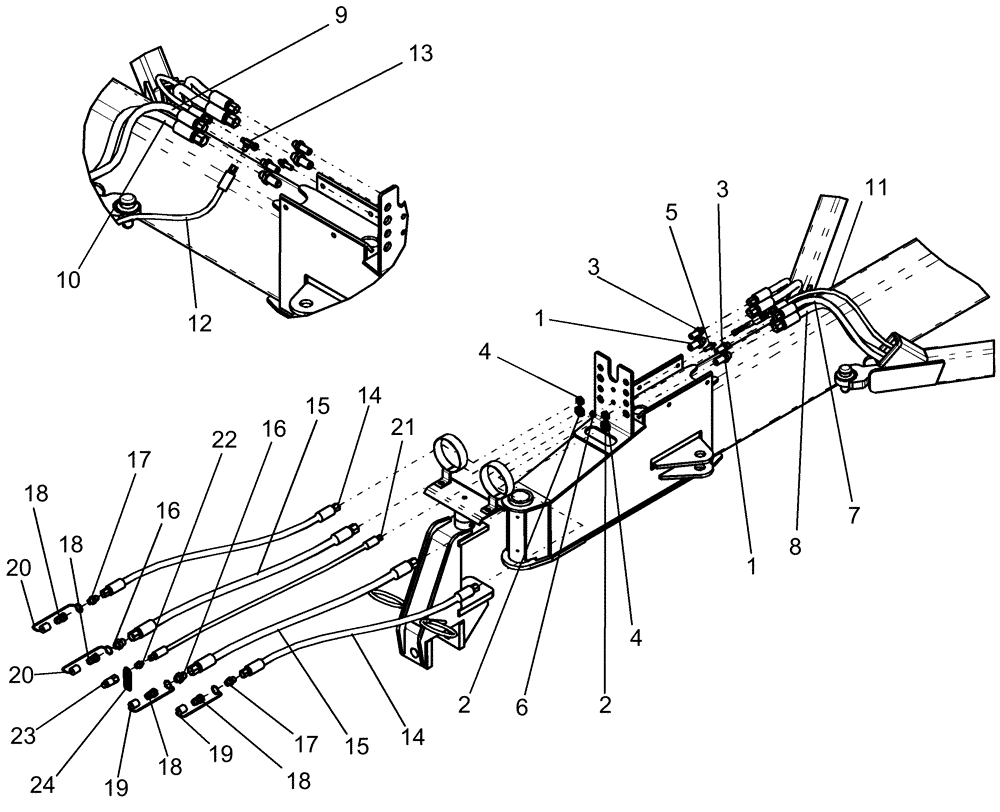

Запчасти Case IH 1250 (35.310.02[01]) - HYDRAULICS - SUPPLY & RETURN HOSES, DIRECT DRIVE - 24 ROW BSN Y9S007001 (35) - HYDRAULIC SYSTEMS

1

86508629

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

2

86513143

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

3

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

4

595460

BHD LOCK NUT,7/8" - 14

2шт.

5

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

6

86525

LOCK NUT,Blkhd, 9/16"-18

1шт.

7

87589821

HYDRAULIC HOSE,16mm ID x 8380mm L, SAE 100R17

16 mm id x 8380 mm fl

1шт.

8

87589823

HYDRAULIC HOSE,19mm ID x 8250mm L, SAE 100R17

19 mm id x 8250 mm fl

1шт.

9

87589821

HYDRAULIC HOSE,16mm ID x 8380mm L, SAE 100R17

16 mm id x 8380 mm fl

1шт.

10

87589823

HYDRAULIC HOSE,19mm ID x 8250mm L, SAE 100R17

19 mm id x 8250 mm fl

1шт.

11

1284302C1

HYDRAULIC HOSE

3/8" x 330" fl

1шт.

12

1284264C1

HYDRAULIC HOSE

3/8" x 290" fl

1шт.

13

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

87580895

HYDRAULIC HOSE,16mm ID x 2720mm L, SAE 100R17

16 mm x 2720 mm fl

2шт.

15

87580893

HYDRAULIC HOSE,19.05mm ID x 2720mm L, SAE 100R17

19 mm x 2720 mm fl

2шт.

16

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2шт.

17

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

18

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

4шт.

19

333717A1

CAP

female qc blue

2шт.

20

333719A1

CAP

hydraulic quick coupler female, yellow

2шт.

21

1284297C1

HYDRAULIC HOSE,9.52 mm ID x 2795.00 mm

1шт.

22

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

23

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

24

86984798

TAG

warning, case drain

1шт.

24

87527165

WARNING DECAL

Case Drain French

1шт.
