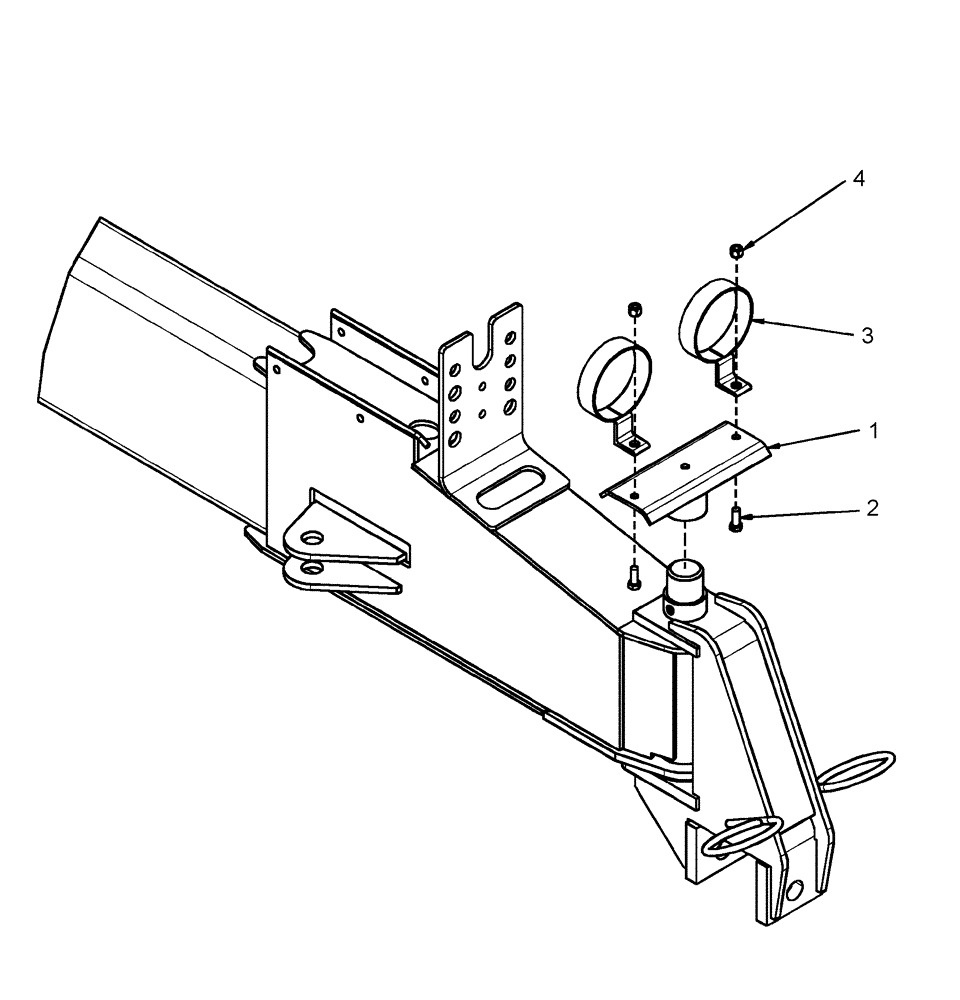

Запчасти Case IH 1250 (35.310.01) - HYDRAULICS - ROUTING MOUNT, 2 POINT - 24 ROW (35) - HYDRAULIC SYSTEMS

1

87574686

BRACKET

hydraulic hose mount pivot, MY2007-2009, Years: -01-JUL-09

1шт.

1

84211239

MOUNT

Hydraulic Hose Pivot, MY2007-2009, Start Year: 01-JUL-09

1шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

MY2007-2009

2шт.

3

323214A1

GUIDE

4 1/2" flex hose, MY2007-2009

2шт.

4

87333862

NUT

1/2"-13, GB, MY2007-2009

1шт.

5

84211239

MOUNT

Hydraulic Hose Mount, MY2010, (Not Shown)

1шт.
