Запчасти Case IH 1250 (35.300.01) - HYDRAULICS - RESERVOIR, RADIATOR AND FILTERS - 24 ROW (35) - HYDRAULIC SYSTEMS

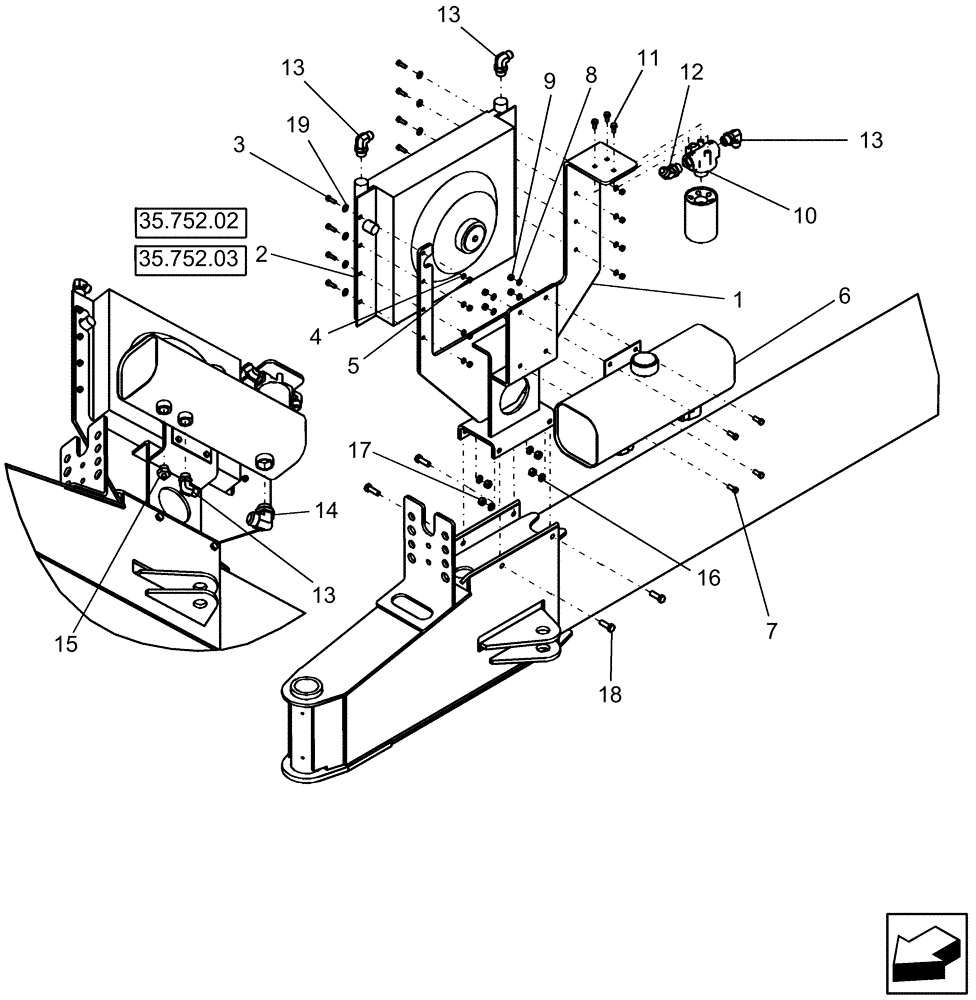

Схема запчастей Case IH 1250 - (35.300.01) - HYDRAULICS - RESERVOIR, RADIATOR AND FILTERS - 24 ROW (35) - HYDRAULIC SYSTEMS
8
10
9
13
13
13
7
15
6
19
18
17
14
35.752.02
35.752.03
5
13
16
11
1
12
4
2
3

Артикул

Название

Примечание

Количество

1

87574687

MOUNTING PARTS

cooler

1шт.

2

400901A1

COOLER ASSY.

hydraulic oil, Years: -01-JUL-07

1шт.

2

87618983

COOLER ASSY.

pusher, Start Year: 01-AUG-07

1шт.

3

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

4

80681

LOCK WASHER,5/16"

8шт.

5

9635082

NUT,5/16" - 18, Gr 5

8шт.

6

87439695

RESERVOIR, HYDRAULIC

4.5 us gal

1шт.

6

129575A1

CAP

breather with dipstick

1шт.

Not Shown

1шт.

6

87435908

SCREEN

reservoir

1шт.

Not Shown

1шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

9

9628503

NUT,3/8"-16, G5

4шт.

10

87404509

FILTER ASSY

includes head

1шт.

10

87404510

FILTER

spin on element

1шт.

11

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

12

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

13

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

14

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

15

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

280431

NUT,1/2"-13, G5

4шт.

18

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

19

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

Выбрано товаров: 25
