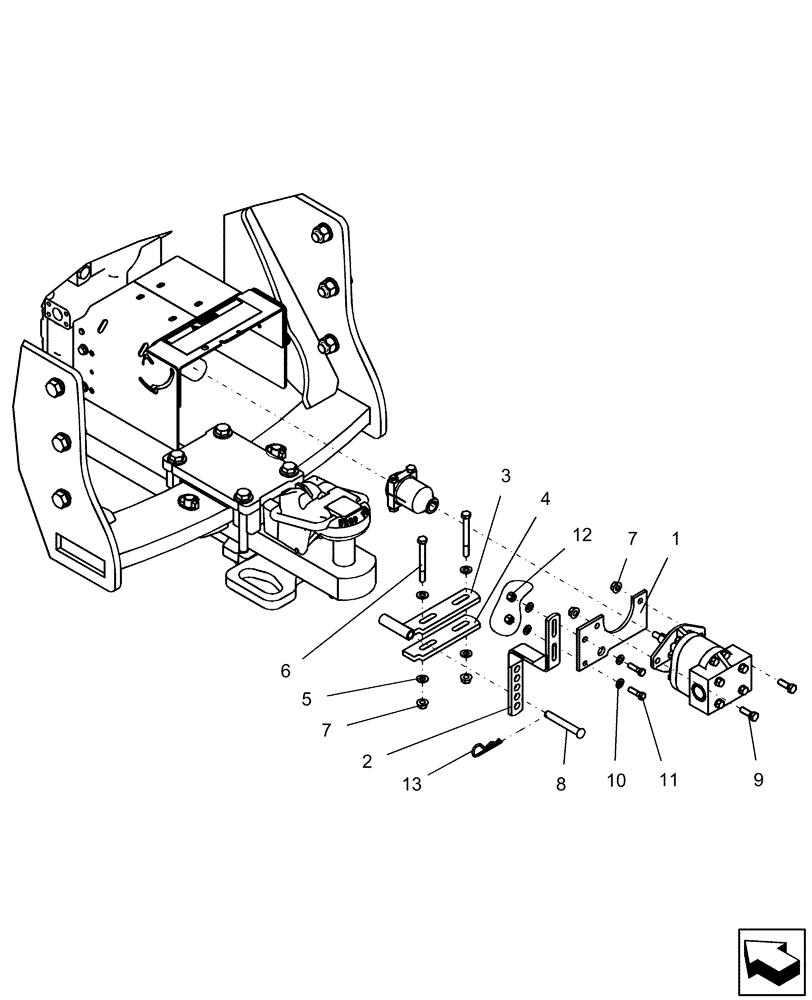

Запчасти Case IH 1250 (35.220.07) - HYDRAULICS - PTO DRAWBAR RESTRAINT (35) - HYDRAULIC SYSTEMS

1

437630A1

PLATE

pump mounting

1шт.

2

84129974

SUPPORT

DKGRA Pto Pump

1шт.

3

87402771

STRAP

assembly retaining magnum

1шт.

4

87402770

STRAP

retaining - magnum

1шт.

5

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

6шт.

6

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

7

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

8

87024323

HEADED PIN,15.88mm OD x 114.3mm L

1шт.

9

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

10

495-11047

WASHER,7/16", SAE

4шт.

11

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

12

86637736

NUT,7/16"-14, GB

2шт.

13

1978738C1

HAIR PIN COTTER

11/64" x 3 51/64"

1шт.
