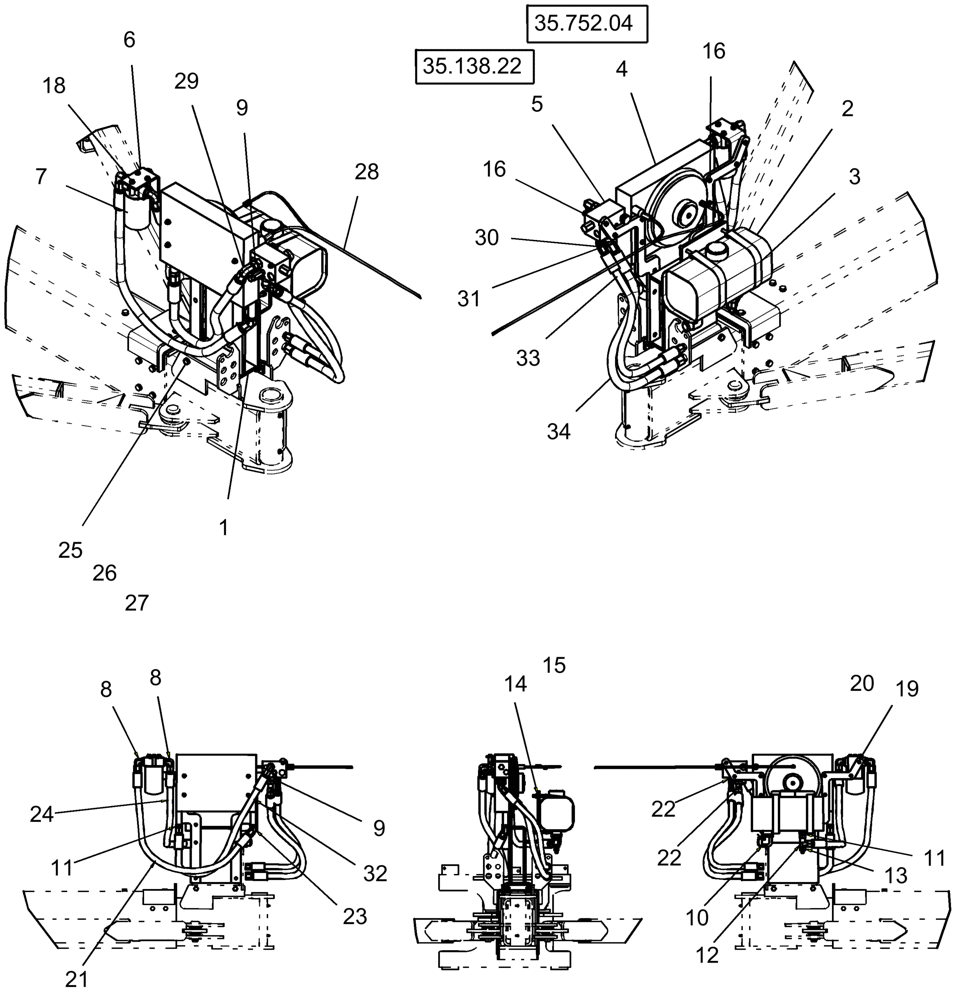

Запчасти Case IH 1250 (35.220.06) - HYDRAULICS - 14 GPM PTO SYSTEM FOR EARLY RISER IV (35) - HYDRAULIC SYSTEMS

1

87748410

MOUNT

14 gpm pto cooler

1шт.

2

115869A1

RESERVOIR, HYDRAULIC

3 gallon

1шт.

3

116093A1

STRAP

oil reservoir tank

2шт.

4

409312A1

OIL COOLER

2 pass with electric fan

1шт.

5

115885A1

VALVE

hydraulic flow control

1шт.

6

86989581

BRACKET

oil filter mount

1шт.

7

87404509

FILTER ASSY

includes head

1шт.

7

87404510

FILTER

spin on element

1шт.

8

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

2шт.

9

577993

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 16 ORB

2шт.

10

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

11

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

2шт.

12

86624129

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

1шт.

13

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

9628503

NUT,3/8"-16, G5

4шт.

16

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

6шт.

17

145458

SERRATED NUT,5/16"-18 GR 5 ZND

6шт.

18

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

19

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

20

230-4245

LOCK NUT,5/16"-18, GA

2шт.

21

87463224

HYDRAULIC HOSE

3/4" x 55" (1400 mm) fl

1шт.

22

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

2шт.

23

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

24

87577018

HYDRAULIC HOSE

19 mm x 760 mm fl

1шт.

25

113-374

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5, Full Thd

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

27

280431

NUT,1/2"-13, G5

4шт.

28

355955A1

HARNESS

cyclo cooling

1шт.

29

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

30

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

31

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1шт.

32

87506122

HOSE

19 mm id x 1050 mm

1шт.

33

87748411

HYDRAULIC HOSE

16 mm x 1050 mm fl

1шт.

34

87506122

HOSE

19 mm id x 1050 mm

1шт.
