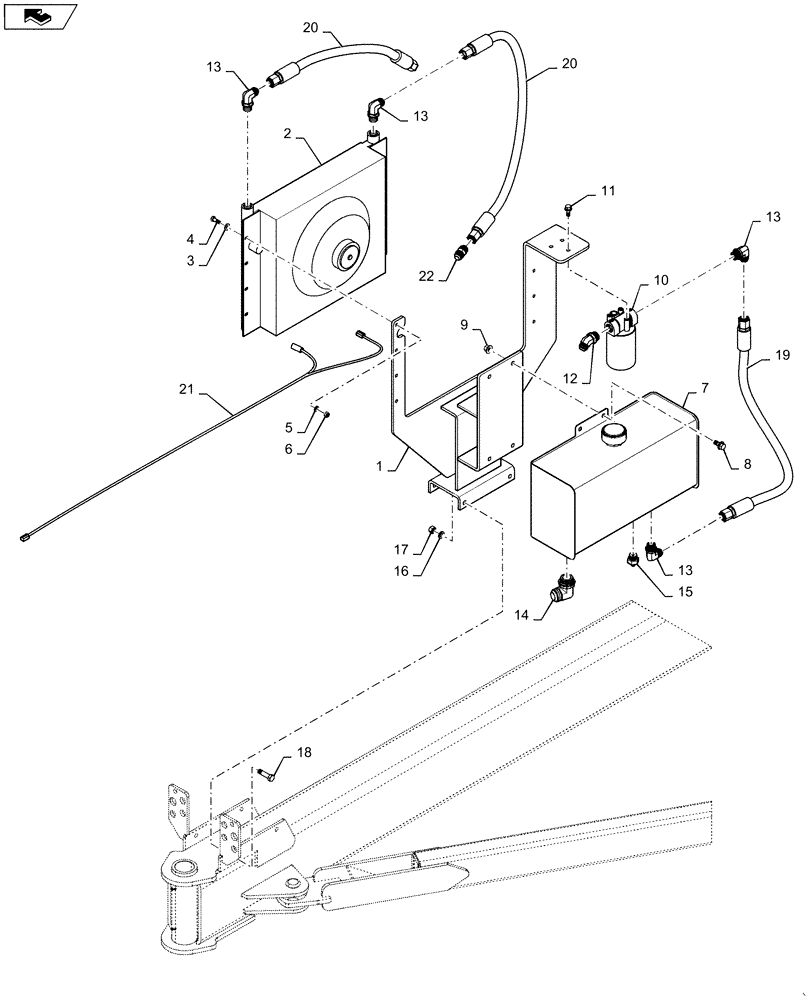

Запчасти Case IH 1250 (35.220.05[02]) - HYDRAULICS - 22 GPM PTO - 12 ROW AND 16 ROW, MODEL YEAR 2013 (35) - HYDRAULIC SYSTEMS

1

84538173

MOUNT

Cooler And Tank

1шт.

2

87618983

COOLER ASSY.

6 Row

1шт.

3

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

8шт.

5

80681

LOCK WASHER,5/16"

8шт.

6

9635082

NUT,5/16" - 18, Gr 5

8шт.

7

84526682

TANK

6.5 Gallons

1шт.

8

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

9

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

10

87404509

FILTER ASSY

Fan Drive

1шт.

11

145913

BOLT,Hex Flg, 5/16" - 18 x 3/4", Gr 5, Full Thd

3шт.

12

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

13

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

14

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

15

86624009

HYD CONNECTOR,9/16"-18, 37 Degree x 1 1/16"-12, O-Ring

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

280431

NUT,1/2"-13, G5

4шт.

18

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

19

87590330

HYDRAULIC HOSE

Fan Drive Filter To Tank, 19 x 1000mm FL

1шт.

20

87578858

HYDRAULIC HOSE

Cooler Assembly, 19 x 600mm FL

2шт.

21

355955A1

HARNESS

Cyclo Cooling

1шт.

22

144121

UNION,1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.
