Запчасти Case IH 1250 (35.220.04) - HYDRAULICS - PTO PUMP AND HYDRAULICS - 24 ROW (35) - HYDRAULIC SYSTEMS

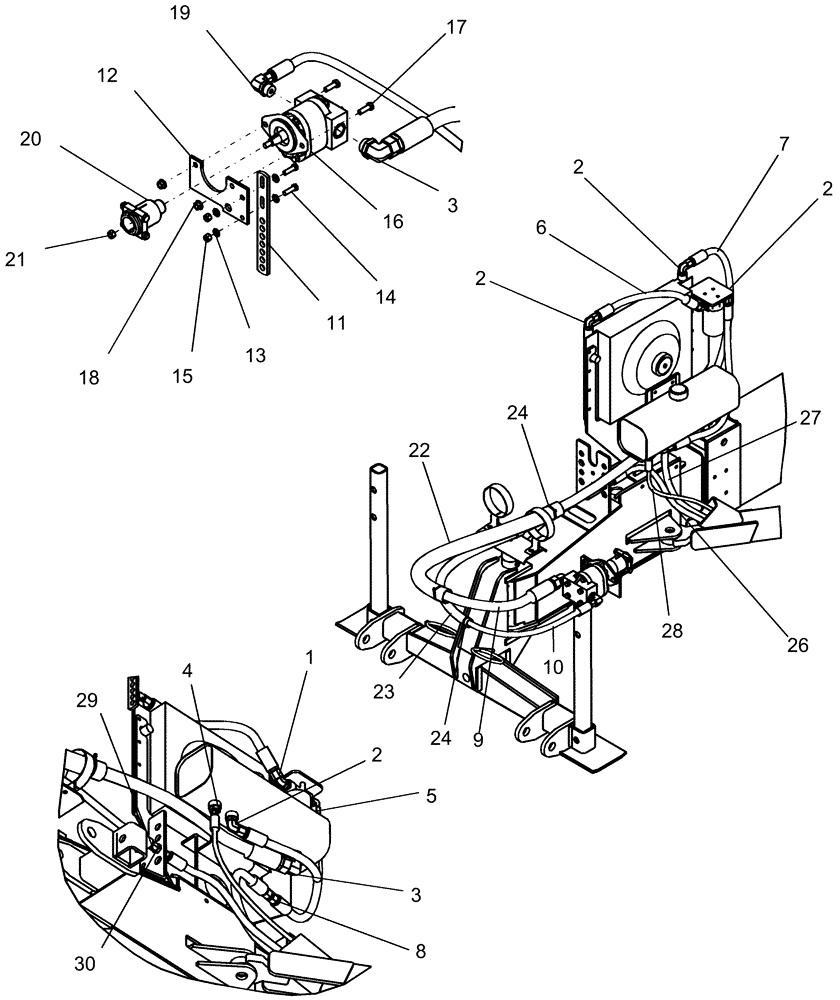

Схема запчастей Case IH 1250 - (35.220.04) - HYDRAULICS - PTO PUMP AND HYDRAULICS - 24 ROW (35) - HYDRAULIC SYSTEMS
15
4
11
7
20
2
28
13
2
14
26
6
17
10
16
18
3
3
2
21
29
24
30
22
8
24
1
23
2
5
9
12
27
19

Артикул

Название

Примечание

Количество

1

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

4шт.

3

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

2шт.

4

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

1шт.

5

87590330

HYDRAULIC HOSE

19 mm x 1000 mm fl

1шт.

6

87578858

HYDRAULIC HOSE

19 mm x 600 mm fl

1шт.

7

87590326

HYDRAULIC HOSE

19 mm x 915 mm fl

1шт.

8

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

9

87488535

HYDRAULIC HOSE,31.5mm ID x 3500mm L, SAE 100R4

31.5 mm x 3500 mm fl

1шт.

10

87488337

HYDRAULIC HOSE,16mm ID x 3200mm L, SAE 100R17

16 mm x 3200 mm fl

1шт.

11

437631A1

BRACKET

adjusting

1шт.

12

437630A1

PLATE

pump mounting

1шт.

13

495-11047

WASHER,7/16", SAE

4шт.

14

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

15

86637736

NUT,7/16"-14, GB

2шт.

16

293243A1

PUMP

PTO 5.84 in3/rev

1шт.

16

293243A1R

REMAN-HYD PUMP

Remanufactured Hydraulic PTO Pump

1шт.

16

293243A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

Q53

KEY,1/4" Sq x 1", Par

1шт.

Not Shown

1шт.

87619629R

REMAN-HYD PUMP

1250 (1/07-), Reman For New P/N 293243A1

1шт.

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

16

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

Comes with the pump, but can be ordered separately

1шт.

16

310572A1

SEAL KIT

shaft pto pump

1шт.

17

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

18

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

19

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

1шт.

20

1958268C1

COUPLING

1 3/4"

1шт.

21

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

22

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

sleeve, hyd protective 2 1/2" x 44"

1шт.

23

87458127

SLEEVE

sleeve, hyd protective 1 1/2" x 44"

1шт.

24

529070

CABLE TIE,368.3mm L

CABLE STRAP

4шт.

26

87589821

HYDRAULIC HOSE,16mm ID x 8380mm L, SAE 100R17

16 mm id x 8380 mm fl

1шт.

27

87589823

HYDRAULIC HOSE,19mm ID x 8250mm L, SAE 100R17

19 mm id x 8250 mm fl

1шт.

28

1284302C1

HYDRAULIC HOSE

3/8" x 330" fl

1шт.

29

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

30

595460

BHD LOCK NUT,7/8" - 14

1шт.

Выбрано товаров: 38
