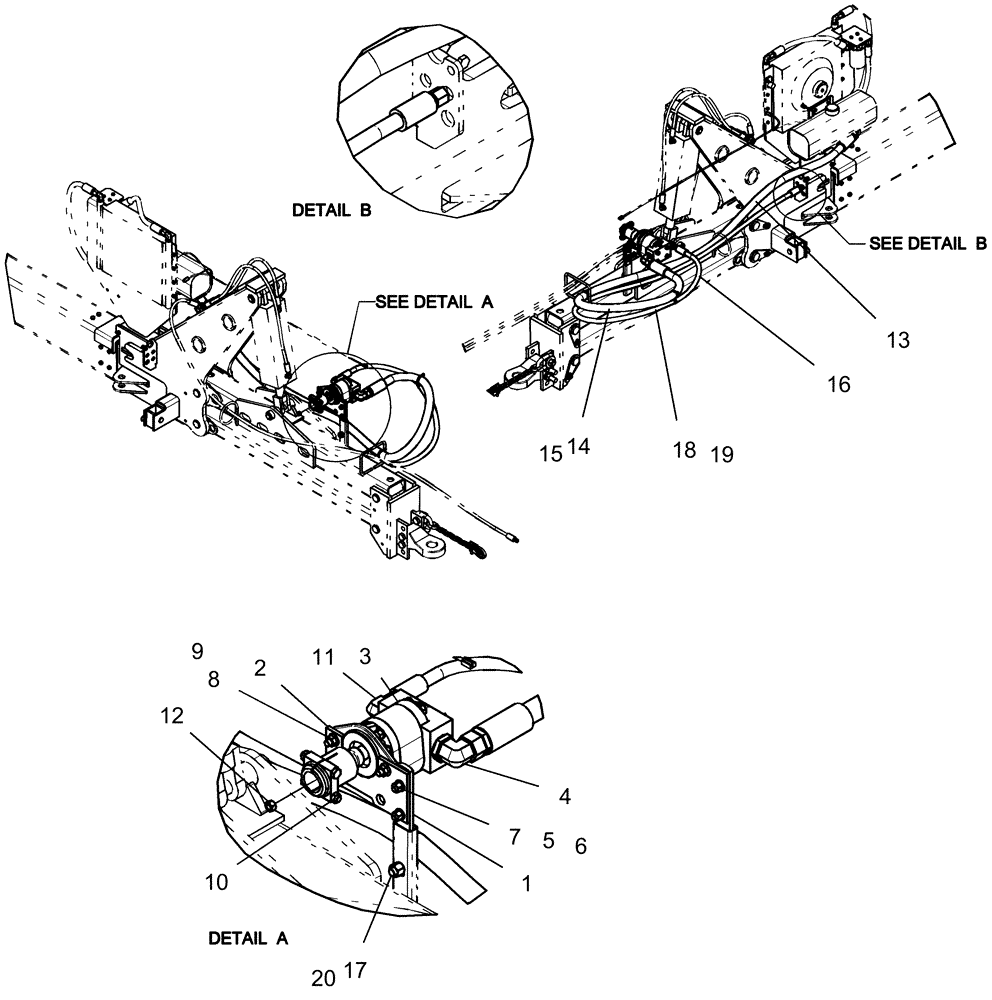

Запчасти Case IH 1250 (35.220.02) - HYDRAULICS - DRAWBAR HITCH WITH 22 GPM PUMP (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
437631A1
BRACKET
adjusting
1шт.
2
437630A1
PLATE
pump mounting
1шт.
3
293243A1
PUMP
PTO 5.84 in3/rev
1шт.
3
293243A1R
REMAN-HYD PUMP
Remanufactured Hydraulic PTO Pump
1шт.
3
293243A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
3
87619629R
REMAN-HYD PUMP
1250 (1/07-), Reman For New P/N 293243A1
1шт.
3
87619629C
CORE-HYDRAULIC PUMP
Return Number
1шт.
3
Q53
KEY,1/4" Sq x 1", Par
1шт.
Not Shown
1шт.
3
280963
NUT,Nut, 1/2-20 GR 5 ZND
1шт.
Comes with the pump, but can be ordered separately
1шт.
3
310572A1
SEAL KIT
shaft pto pump
1шт.
Not Shown
1шт.
3
87619629
PUMP
PTO 5.84 in3/rev, 24 Row
1шт.
3
87619629R
REMAN-HYD PUMP
1250 (1/07-)
1шт.
3
87619629C
CORE-HYDRAULIC PUMP
Return Number
1шт.
4
84530
ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring
1шт.
5
495-11047
WASHER,7/16", SAE
4шт.
6
86050212
BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8
2шт.
7
86637736
NUT,7/16"-14, GB
2шт.
8
86512371
SERRATED NUT,Flg, USR, 1/2"-13
2шт.
9
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
2шт.
10
1958268C1
COUPLING
1 3/4"
1шт.
11
218-5130
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB
1шт.
12
280963
NUT,Nut, 1/2-20 GR 5 ZND
1шт.
13
87488535
HYDRAULIC HOSE,31.5mm ID x 3500mm L, SAE 100R4
31.5 mm x 3500 mm fl
1шт.
13
87580858
HYDRAULIC HOSE,31.5mm ID x 3050mm L, SAE 100R4
31.5 mm x 3050 mm fl, for units with two point hitch or non-drawbar
1шт.
14
87458128
PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L
sleeve, hyd protective 2 1/2" x 44"
1шт.
15
87557084
CABLE TIE,14"
CABLE STRAP 14" with stainless locking clip
2шт.
16
87488337
HYDRAULIC HOSE,16mm ID x 3200mm L, SAE 100R17
16 mm x 3200 mm fl
1шт.
17
86505999
BOLT,Hex, 5/8" - 11 x 2", Gr 5
1шт.
18
87458127
SLEEVE
sleeve, hyd protective 1 1/2" x 44"
1шт.
19
87557084
CABLE TIE,14"
CABLE STRAP 14" with stainless locking clip
2шт.
20
86639566
NUT,5/8"-11, GB
1шт.
Выбрано товаров: 34
