Запчасти Case IH 1250 (35.220.01) - HYDRAULICS - DRAWBAR HITCH WITH 14 GPM PUMP (35) - HYDRAULIC SYSTEMS

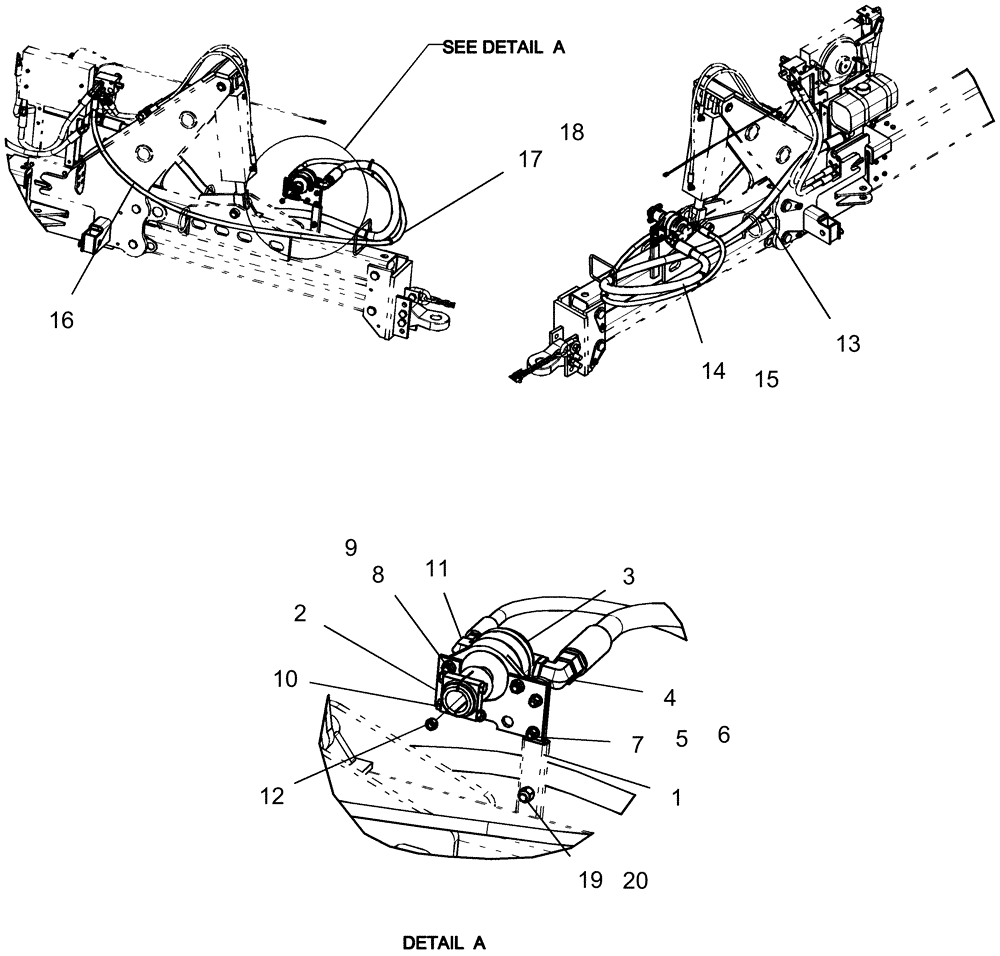

Схема запчастей Case IH 1250 - (35.220.01) - HYDRAULICS - DRAWBAR HITCH WITH 14 GPM PUMP (35) - HYDRAULIC SYSTEMS
9
16
14
19
1
8
4
7
10
13
6
15
17
2
3
11
5
18
20
12

Артикул

Название

Примечание

Количество

1

437631A1

BRACKET

adjusting

1шт.

2

437630A1

PLATE

pump mounting

1шт.

3

398126A1

HYDRAULIC PUMP,63.6 CC

63.6 cm3 (3.88 in3) displacement

1шт.

398126A1R

REMAN-HYD PUMP

1250 (1/07-)

1шт.

398126A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

3

D149152

PACKAGE, REPAIR

minor

1шт.

4

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

5

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

4шт.

6

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

2шт.

7

86637736

NUT,7/16"-14, GB

2шт.

8

86512371

SERRATED NUT,Flg, USR, 1/2"-13

2шт.

9

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

2шт.

10

1958268C1

COUPLING

1 3/4"

1шт.

11

87024324

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 5/16"-12, O-Ring

1шт.

12

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

13

87488535

HYDRAULIC HOSE,31.5mm ID x 3500mm L, SAE 100R4

31.5 mm x 3500 mm fl

1шт.

14

87458128

PROTECTIVE SLEEVE,64.5mm ID x 1117.6mm L

sleeve, hyd protective 2 1/2" x 44"

1шт.

15

291207C1

CLAMP

14" with stainless locking clip

4шт.

16

87580895

HYDRAULIC HOSE,16mm ID x 2720mm L, SAE 100R17

16 mm x 3650 mm fl

1шт.

17

87458127

SLEEVE

sleeve, hyd protective 1 1/2" x 44"

1шт.

18

87502039

CABLE TIE

CABLE STRAP 14" with stainless locking clip

1шт.

19

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

20

86639566

NUT,5/8"-11, GB

1шт.

Выбрано товаров: 24
