Запчасти Case IH 1250 (35.138.18) - HYDRAULICS - BULK FILL - ASSEMBLY, VALVE 87438424 (35) - HYDRAULIC SYSTEMS

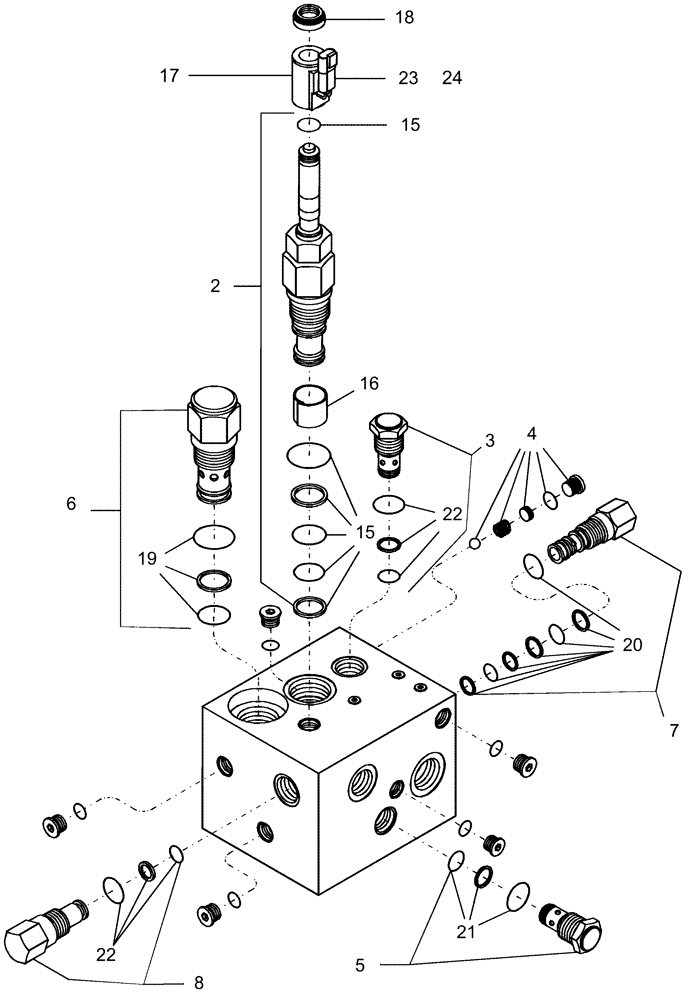

Схема запчастей Case IH 1250 - (35.138.18) - HYDRAULICS - BULK FILL - ASSEMBLY, VALVE 87438424 (35) - HYDRAULIC SYSTEMS
8
18
6
7
22
19
15
20
24
17
2
21
5
4
22
15
16
23
3

Артикул

Название

Примечание

Количество

0

87438424

VALVE

assembly bulk fill PTO with plugs

1шт.

2

304495A3

VALVE

cartridge, flow control

1шт.

304495A3R

REMAN-HYD VALVE

1250 RISER® SERIES (1/07-)

1шт.

304495A3C

CORE-VALVE HYD

Return Number

1шт.

84537688R

REMAN-HYD VALVE

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/07-), Reman For New P/N 304495A3

1шт.

84537688C

CORE-VALVE HYD

Return Number

1шт.

3

86511474

CHECK VALVE

Coast

1шт.

4

1341811C1

SPRING-CHECK

REPAIR KIT sense check

1шт.

5

304421A1

VALVE

flow regulator

1шт.

6

335894A1

VALVE

flow limiter

1шт.

7

87427764

PLUG

cavity 5/8" orb, 7/8"-14

1шт.

8

134687A1

PLUG

relief

1шт.

15

304499A1

SEAL KIT

seal, flow control cartridge

1шт.

16

324489A1

SCREEN

proportional valve

1шт.

17

188105A1

SOLENOID

coil

1шт.

18

188106A1

NUT

retaining, Serial Range: coil-stem

1шт.

19

1288954C1

SEAL KIT

1шт.

20

S301087

SEAL KIT

differentional pressure compensator

1шт.

21

304418A1

SEAL KIT

seal, flow regulator

1шт.

22

86508168

SEAL KIT

Relief Valve

2шт.

23

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

24

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.

Выбрано товаров: 22
