(35.138.16[01]) - HYDRAULICS - ASSEMBLY, VALVE MARKER 87463248 BSN Y9S007001

Запчасти Case IH 1250 (35.138.16[01]) - HYDRAULICS - ASSEMBLY, VALVE MARKER 87463248 BSN Y9S007001 (35) - HYDRAULIC SYSTEMS

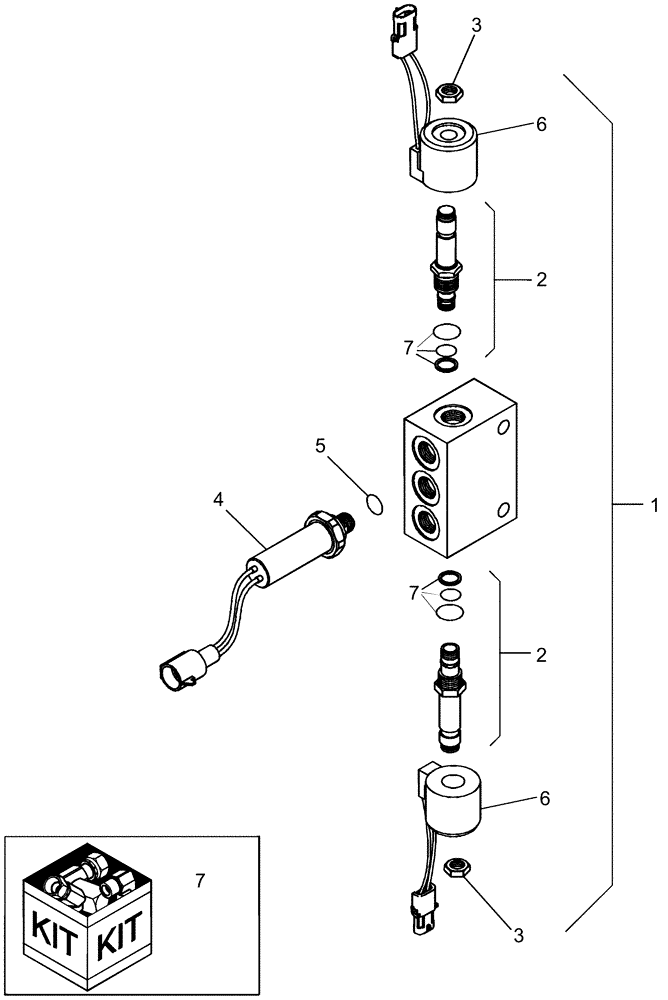

Схема запчастей Case IH 1250 - (35.138.16[01]) - HYDRAULICS - ASSEMBLY, VALVE MARKER 87463248 BSN Y9S007001 (35) - HYDRAULIC SYSTEMS
7
7
1
3
3
5
2
6
2
4
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87463248

VALVE

assembly, marker

1шт.

2

87436627

VALVE

assembly 2 way cartridge

2шт.

3

73113425

NUT

1/2"-20, Thin

2шт.

4

1547188C1

SWITCH

pressive inv

1шт.

5

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

1шт.

6

1340843C1

SOLENOID,12V

solenoid with Packard

2шт.

7

86508168

SEAL KIT

Relief Valve

2шт.

Выбрано товаров: 7
