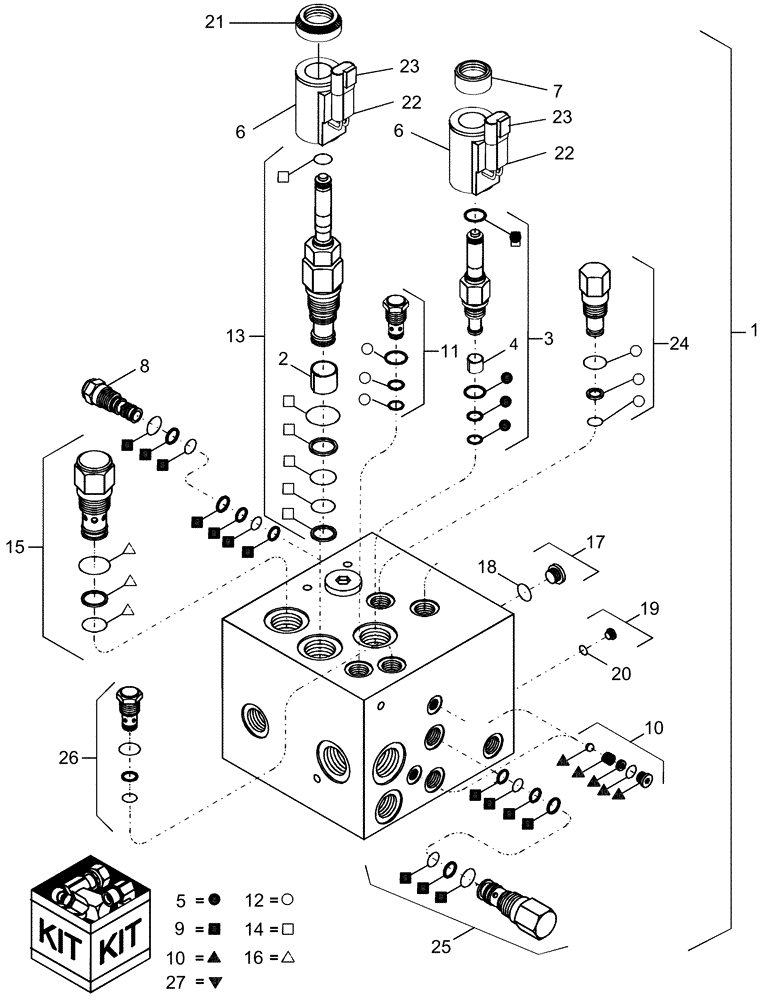

Запчасти Case IH 1250 (35.138.12) - HYDRAULICS - VALVE ASSEMBLY, MULTI-VALVE DIRECT DRIVE 87575905 - 24 ROW (35) - HYDRAULIC SYSTEMS

1

87575905

VALVE

assembly direct drive

1шт.

2

324489A1

SCREEN

proportional valve

1шт.

3

254969A2

HYDRAULIC VALVE

flow control cartridge

2шт.

4

1285892C1

FILTER SCREEN

1шт.

5

304494A1

SEAL KIT

seal, flow control valve

1шт.

6

188105A1

SOLENOID

coil

2шт.

7

440028A1

NUT

coil retaining

1шт.

8

87506124

VALVE

differential pressure sensing

1шт.

9

S301087

SEAL KIT

differentional pressure compensator

2шт.

10

1341811C1

SPRING-CHECK

REPAIR KIT sense check

2шт.

11

86511474

CHECK VALVE

Coast

1шт.

12

86508168

SEAL KIT

Relief Valve

2шт.

13

304495A3

VALVE

cartridge, flow control

1шт.

304495A3R

REMAN-HYD VALVE

1250 RISER® SERIES (1/07-)

1шт.

304495A3C

CORE-VALVE HYD

Return Number

1шт.

84537688R

REMAN-HYD VALVE

1250 FRONT FOLD TRAILING PLANTER EARLY RISER® SERIES (1/07-), Reman For New P/N 304495A3

1шт.

84537688C

CORE-VALVE HYD

Return Number

1шт.

14

304499A1

SEAL KIT

seal, flow control cartridge

1шт.

15

335894A1

VALVE

flow limiter

1шт.

16

1288954C1

SEAL KIT

1шт.

17

9625178

PLUG,9/16" - 18 ORB

6шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

188106A1

NUT

retaining, Serial Range: coil-stem

2шт.

22

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

2шт.

23

225318C1

ELEC CONNECTOR,2 Pin

W2P

2шт.

24

134687A1

PLUG

relief

1шт.

25

87427764

PLUG

cavity 5/8" orb, 7/8"-14

1шт.

26

304421A1

VALVE

flow regulator

1шт.

27

304418A1

SEAL KIT

seal, flow regulator

1шт.
