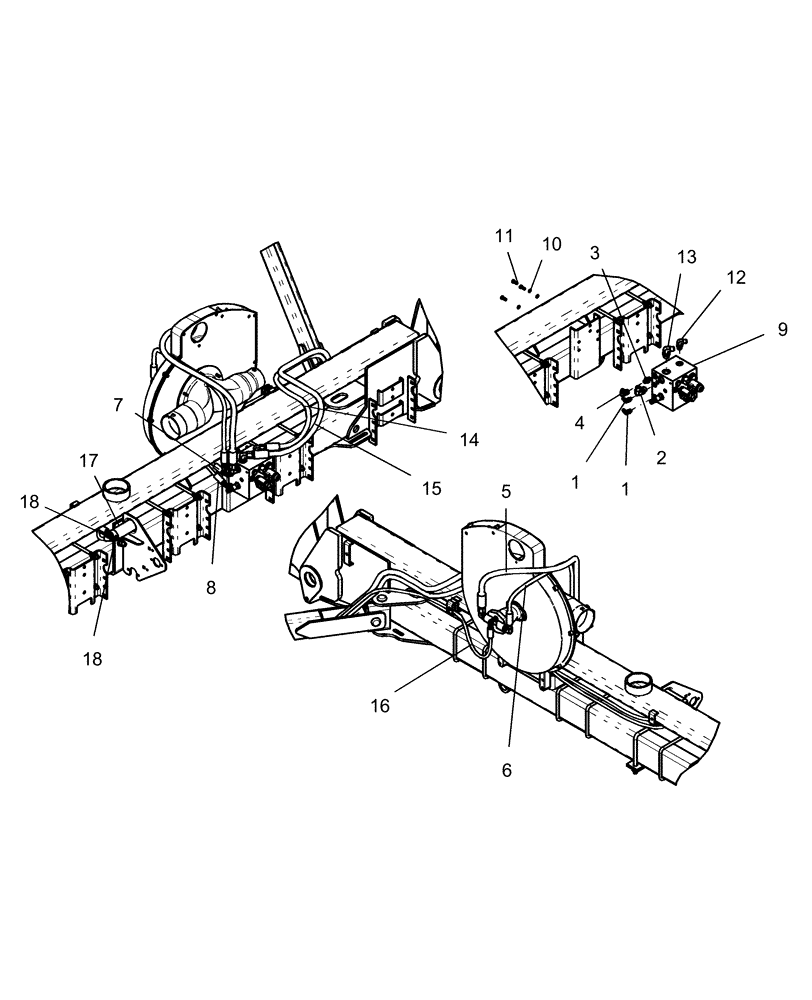

Запчасти Case IH 1250 (35.138.03) - HYDRAULICS - MULTI-VALVE MOUNT, PTO - 24 ROW (35) - HYDRAULIC SYSTEMS

1

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

2

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

3

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

1шт.

4

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

1шт.

5

87463224

HYDRAULIC HOSE

3/4" x 55" (1400 mm) fl

1шт.

6

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

7

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

8

1284301C1

HYDRAULIC HOSE

3/8" x 45" fl

1шт.

9

87575909

VALVE

assembly Multi-Valve, PTO drive

1шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

12

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

13

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

14

87589821

HYDRAULIC HOSE,16mm ID x 8380mm L, SAE 100R17

16 mm id x 8380 mm fl

1шт.

15

87589823

HYDRAULIC HOSE,19mm ID x 8250mm L, SAE 100R17

19 mm id x 8250 mm fl

1шт.

16

1284302C1

HYDRAULIC HOSE

3/8" x 330" fl

1шт.

17

87461605

MOTOR

49.17cm3 (3.0 in3) displacement

1шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.
