(90.108.04[02]) - DECALS - 16 ROW ASN Y9S007001

Запчасти Case IH 1250 (90.108.04[02]) - DECALS - 16 ROW ASN Y9S007001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

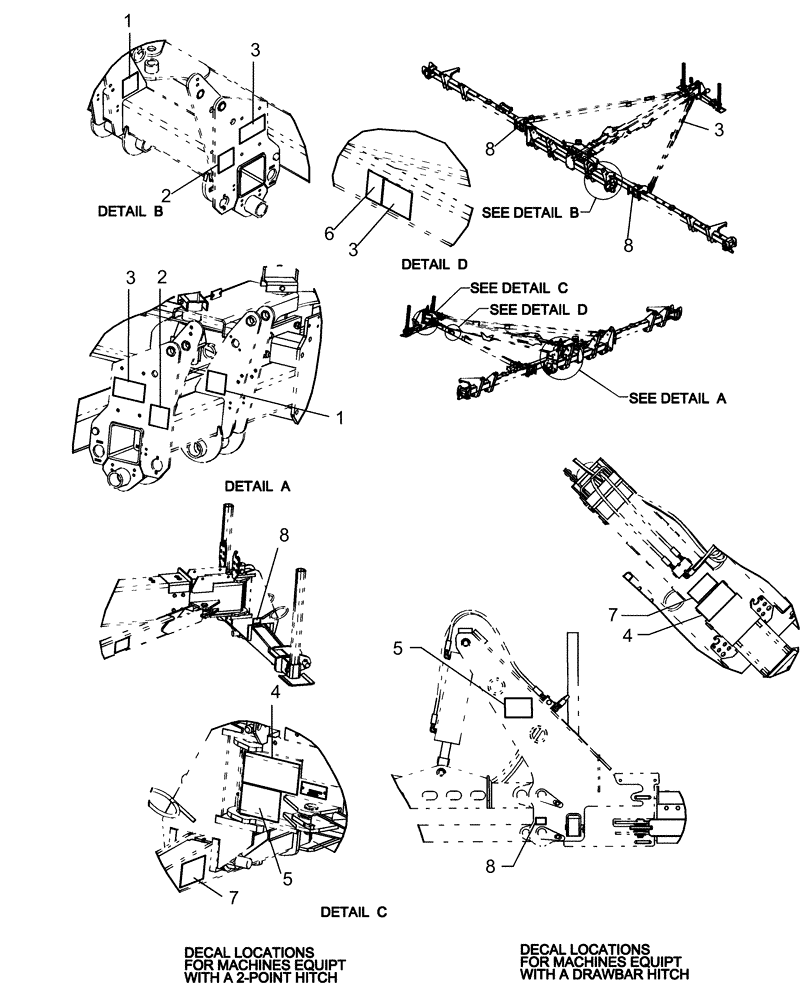

Схема запчастей Case IH 1250 - (90.108.04[02]) - DECALS - 16 ROW ASN Y9S007001 (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
4
6
5
8
8
3
2
5
8
1
4
7
2
3
3
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87588037

DECAL

field crush hazard

2шт.

2

87588036

DECAL

transport crush hazard

2шт.

3

87588040

DECAL

pinch hazard

4шт.

4

87588041

DECAL

tractor speed control

1шт.

5

86622073

WARNING DECAL

sign

1шт.

6

333088A1

DECAL

protective clothing

1шт.

7

87588038

DECAL

tipping hazard

1шт.

8

87588042

DECAL

hidden grease fittings

3шт.

Выбрано товаров: 8
