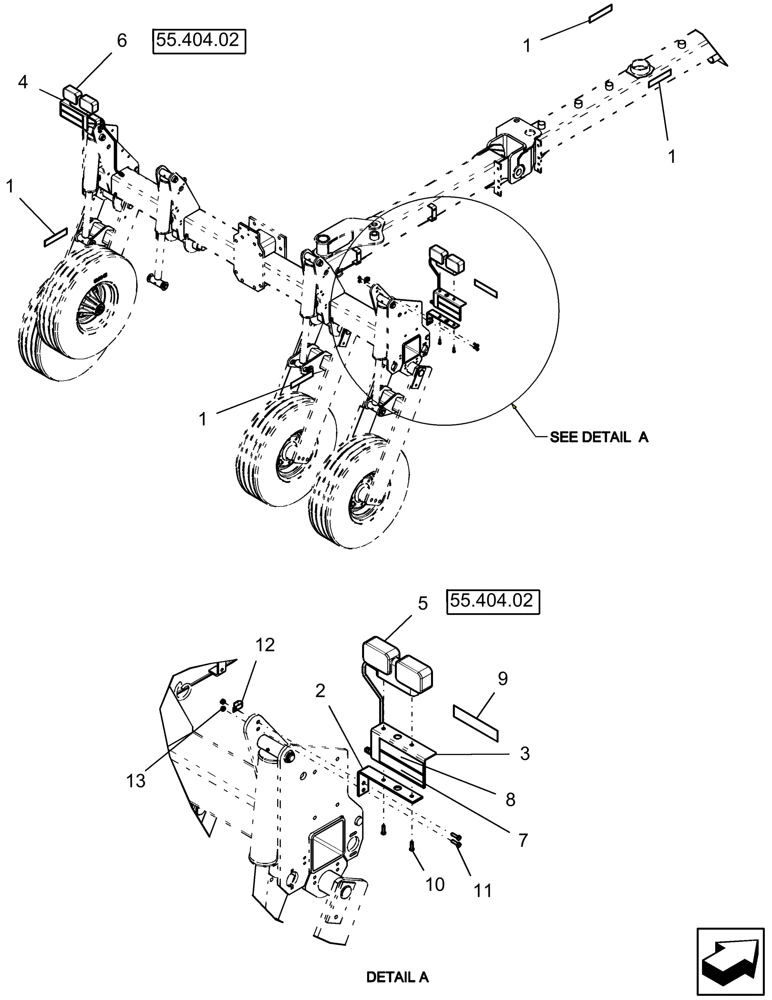

Запчасти Case IH 1250 (90.108.02[01]) - DECALS - LAYOUT LIGHTING - 16 ROW BSN Y9S007001 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86547782

REFLECTOR,YELLOW

Yellow Retroflective tape

4шт.

2

87675112

BRACKET

light

2шт.

3

87728482

BRACKET

light and decals, RH

1шт.

4

87728483

BRACKET

light and decals, LH

1шт.

5

86404264

LIGHT,12V, 21W, Amber/Red

rear LH

1шт.

6

86404265

LIGHT

rear RH

1шт.

7

311863A1

REFLECTOR

Retroreflective Red

2шт.

8

311865A1

REFLECTOR

fluorescent orange

2шт.

9

311864A1

REFLECTOR

Retroreflective Amber 1.375" x 7.25"

2шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

11

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

12

134577

CLIP,J

2шт.

13

9628503

NUT,3/8"-16, G5

4шт.
