(35.116.13) - HYDRAULICS - CYLINDER 87462245, 5 1/2" X 41 1/4" - 24 ROW FOLD

Запчасти Case IH 1250 (35.116.13) - HYDRAULICS - CYLINDER 87462245, 5 1/2" X 41 1/4" - 24 ROW FOLD (35) - HYDRAULIC SYSTEMS

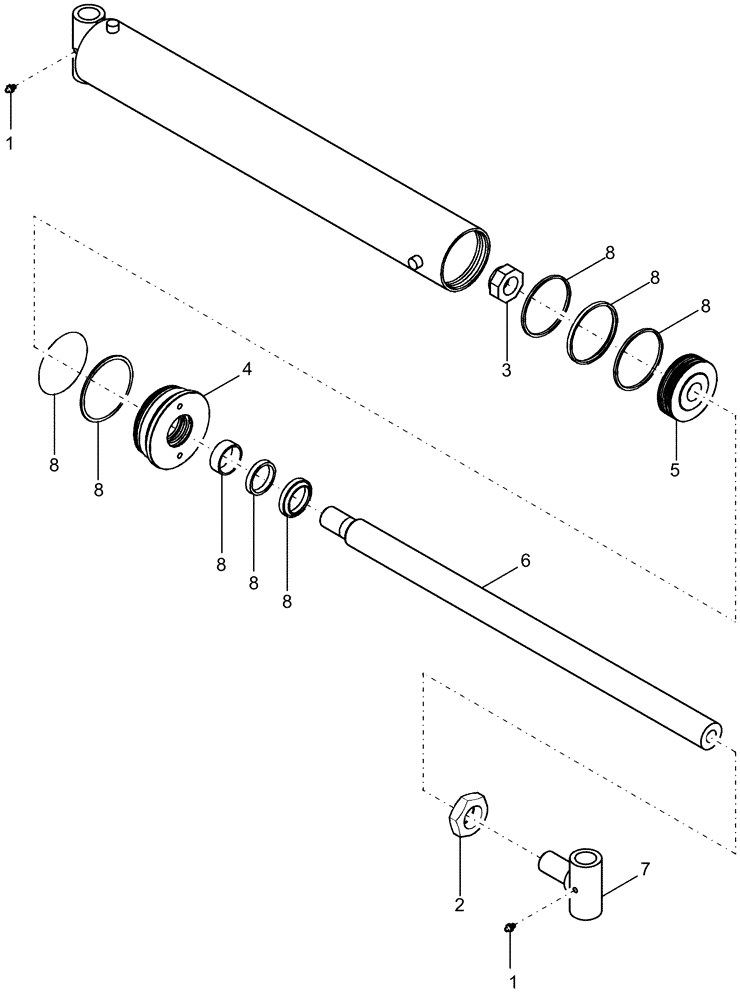

Схема запчастей Case IH 1250 - (35.116.13) - HYDRAULICS - CYLINDER 87462245, 5 1/2" X 41 1/4" - 24 ROW FOLD (35) - HYDRAULIC SYSTEMS
4
8
8
2
8
5
1
8
3
7
8
8
8
1
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87462245

HYDRAULIC CYLINDER,Double Acting, 69.85mm Rod, 1045.72mm Stroke

5 1/2" x 41 1/4", fold

1шт.

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

86637665

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

3

87396626

THIN NUT

1 3/4"-12 thin

1шт.

4

87506109

HEAD

front

1шт.

5

87506110

PISTON

fold cylinder

1шт.

6

87506111

ROD

fold cylinder

1шт.

7

87506112

EYE

rod, adjustable

1шт.

8

87506113

SEAL KIT

1шт.

Выбрано товаров: 9
